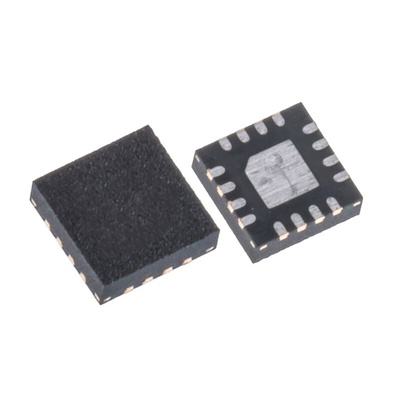

LM2901Q4T STMicroelectronics, Quad Comparator, CMOS/TTL O/P, O/P, 1.3μs 2 → 32 V 16-Pin QFN, Компаратор

This device consists of four independent precision voltage comparators, which are designed specifically to operate from a single supply over a wide range of voltages. Operation from split power supplies is also possible. These comparators also have a unique characteristic in that the input common-mode voltage range includes the negative rail even though operated from a single power supply voltage.

Wide single supply voltage range or dual supplies for all devices: +2 V to +36 V or ±1 V to ±18 V
Very low supply current (1.1 mA) independent of supply voltage (1.4 mW/comparator at +5 V)
Low input bias current: 25 nA typ.
Low input offset current: ±5 nA typ.
Input common-mode voltage range includes negative rail
Low output saturation voltage:250 mV typ. (IO= 4 mA)
Differential input voltage range equal to the supply voltage
TTL, DTL, ECL, MOS, CMOS compatible outputs

Datasheet LM2901Q4TST
