1050222, Phoenix Contact MACX MCR Series Signal Conditioner, RTD, Potentiometer Input, Current Output, 24V dc Supply, ATEX

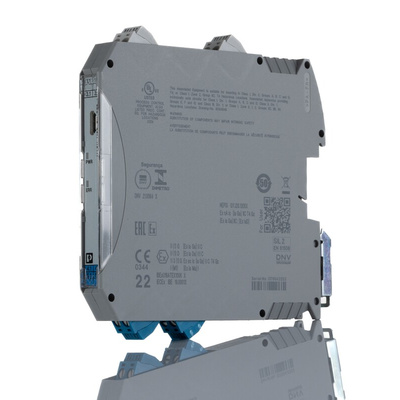

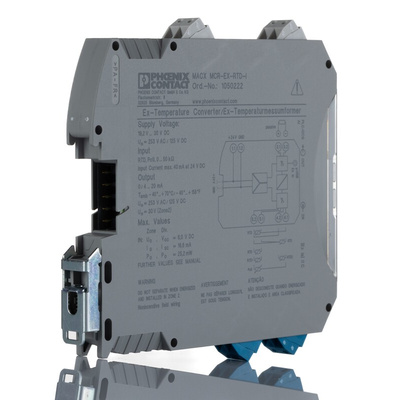

Phoenix Contact Signal Conditioner, Temperature Transducer Type, DIN Rail Mounting - MACX MCR-EX-RTD-I - 1050222

When you need to process and convert info from temperature measuring devices in hazardous areas, this signal conditioner from Phoenix Contact has your back. You can use it to transmit data and commands from instruments in explosive atmospheres to machinery in non-hazardous zones using a safe, low-current signal no greater than 20mA.
The product's insulation protects you from surges or overvoltage up to a peak isolation value of 375V (per IEC/EN 61010-1 and IEC/EN 60079-11), so it's a trusty choice for keeping your workplace safe.
As it's suitable for Pt, Ni and Cu sensors with 2, 3 or 4 wires, you can rest assured this is a versatile option that works with various bits of kit for testing temperatures. What's more, as it accepts conductors anywhere between 0.2 and 2.5mm², you'll find it's a breeze to pair with AWG sizes 24 to 14.

Features & Benefits

• PA66 housing is flame-retardant, so helps minimise the spread of fire
• IP20 approval means you can trust it's touch-safe, so there's no risk of electric shocks
• Green and red LED indicators make diagnostics easy

Datasheet 1050222

Instruction Sheet - 1050222

Line Drawing - 1050222

Manual - Power Manual
