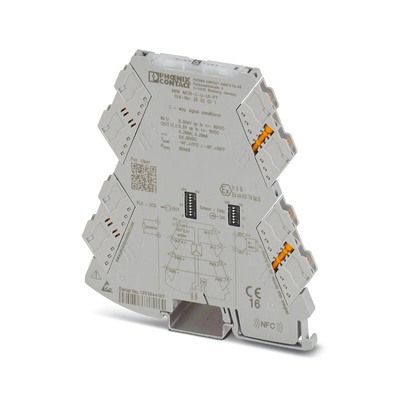

2902021, Phoenix Contact Signal Conditioner, 0 → 30 V Input, 0 → 20 mA, -10 → 10 V, 4 → 20 (SIL) mA

3-way signal conditioner, with configurable input/output, for electrical isolation and conversion of Analogue signals in the mV and V range, unipolar as well as bipolar. Push-in connection technology, standard configuration.
Voltage signal 3-way signal conditioner with pluggable connection technology for the electrical isolation, conversion, amplification, and filtering of mV signals to V signals. Input signals from -50 mV ... 50 mV / -30 V ... 30 V and output signals from -10 V ... 10 V / 0(4) mA ... 20mA are supported. The measuring transducer supports fault monitoring and NFC communication.

Configurable 3-way signal conditioner with plug-in connection technology
Input and output signal range configurable via DIP switches
Bipolar input/output signals
Calibrated measuring range switch-over
Screw or push-in connection available
Reinforced insulation
Supply voltage range 9.6 V DC ... 30 V DC

Datasheet 2902021
