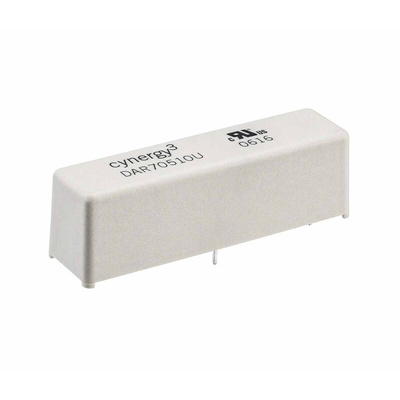

DAT70505U, Sensata / Cynergy3 PCB Mount Reed Relay, 5V dc Coil, SPST, 3500V Max, 2 A Max, 28Ω, Реле

Sensata Cynergy3 Reed Relay, Tungsten Contacts, 2A Maximum Switching Current - DA(UL) Series - DAT70505U

Use this reed relay from Sensata Cynergy3 for the effective control of your reed switches. It uses an electromagnet to open and close contacts and direct the flow of electricity in a circuit. The contacts are made of tungsten for high conductivity and resistance to corrosion, helping to ensure a reliable connection. This relay has a high switching voltage of up to 3500V AC/DC, so it's a good choice for high-power applications such as power supplies and test equipment.

Features & Benefits

• Compact dimensions of 60 (length) x 15.8 (width) x 18.5mm (height) to maximise packing space on your PCB
• Long lifespan of one million switching cycles at 50W for long-lasting performance
• Mounting pins for ease of installation on a PCB

At what temperatures can I use this reed relay?

This reed relay has a broad operating temperature range between -20°C and +70°C, making it suitable for use in challenging conditions.

How quickly does this reed relay operate?

This reed relay has a fast operating time of 3ms, ensuring you get rapid results.

DA (UL) N/O, HIGH VOLTAGE RELAYS - 10KV, 7.5KV & 5KV Series Datasheet
