DAT72475FU, Sensata / Cynergy3 PCB Mount Reed Relay, 24V dc Coil, SPST, 7000V Max, 2 A Max, 780Ω, Реле

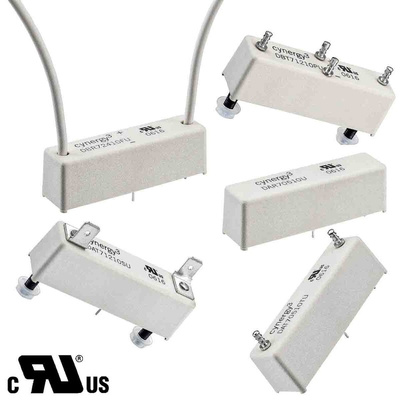

Sensata Cynergy3 Reed Relay, 5000V AC/DC, 2A Switching Current - DA(UL) Series - DAT72475FU

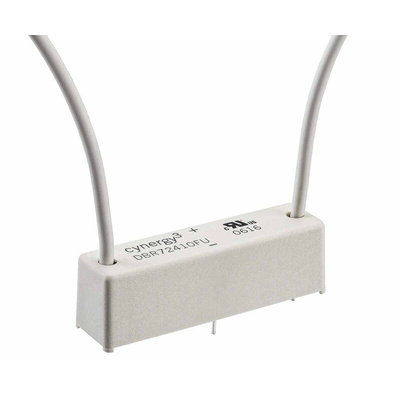

Switch low-level signals on and off with this reed relay from Sensata Cynergy3. It's long-lasting and requires minimal maintenance thanks to its dry switching lifespan of one billion cycles. The unit has compact dimensions of 60 (length) x 15.8 (width) x 18.5mm (height), helping to maximise packing efficiency on a busy PCB. The tungsten contacts are highly conductive and resistant to corrosion for use in demanding applications. You'll find this relay used for high-voltage power supplies and equipment, like cardiac defibrillators and test equipment.

Features & Benefits

• Wide operating temperature range of -20ºC to +70ºC for use in demanding environments
• Hermetically sealed contacts for protection against contaminants and moisture

How much contact resistance does this reed relay have?

This reed relay has a low typical contact resistance of 100mΩ and a maximum contact resistance of 250mΩ. Low contact resistance helps to keep heat rise low, preventing the relay's contacts from melting and welding together. It also helps to reduce the risk of wasted power, making the reed relay more energy-efficient.

DA (UL) N/O, HIGH VOLTAGE RELAYS - 10KV, 7.5KV & 5KV Series Datasheet
