DBR72405PU, Sensata / Cynergy3 Panel Mount Reed Relay, 24V dc Coil, 1000V Max, 3 A Max, 925Ω, Реле

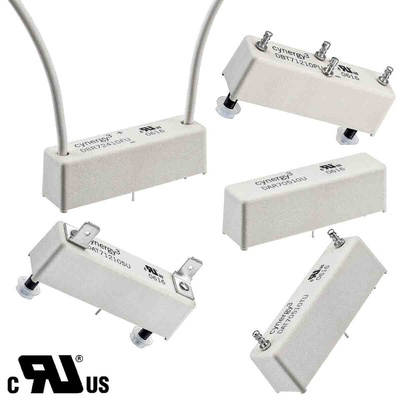

Sensata Cynergy3 Reed Relay, 24V DC Coil Voltage, 5kV Contact Isolation - DB(UL) Series - DBR72405PU

Choose this reed relay from Sensata Cynergy3 to quickly switch large electrical loads. It has a fast operating time of 2ms for rapid switching. The relay's rhodium contacts are highly conductive and have a low resistance of 50mΩ, so they help to ensure reliable signal transmission. This reed relay has a switching voltage of 1kV, making it suitable for use in heavy-duty applications. You'll find it used in testing equipment, medical devices and power supplies.

Features & Benefits

• Wide operating temperature range of -20°C to +70°C for use in demanding environments
• Long service life of one billion dry switching cycles for long-lasting performance
• Contact isolation voltage of 5kV for protection against powerful surges in voltage
• Compact dimensions of 60 (length) x 15.8 (width) x 18.5mm (height) to maximise space on a panel

How does a reed relay work?

A reed relay is made up of two conductive contacts inside an electrical coil. When the coil is energised, it creates a magnetic field that moves the contacts together or apart to complete or break a circuit.

DB (UL) N/C, HIGH VOLTAGE RELAYS - 10KV, 7.5KV & 5KV Series Datasheet
