DAR72405PU, Sensata / Cynergy3 Panel Mount Reed Relay, 24V dc Coil, SPST, 1000V Max, 3 A Max, 780Ω, Реле

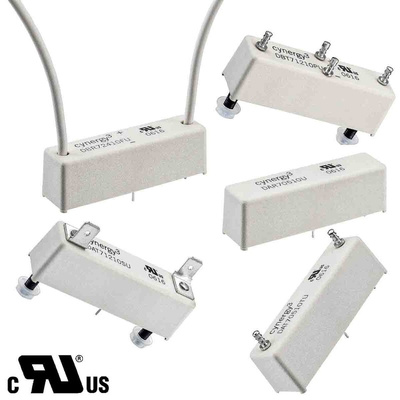

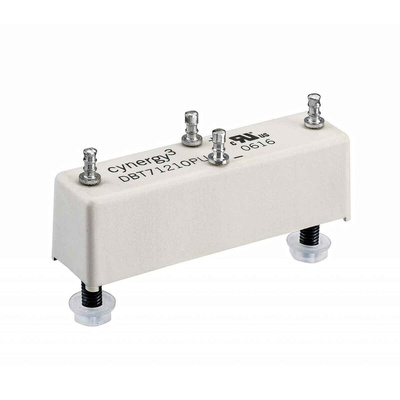

Sensata Cynergy3 Reed Relay, 50W Maximum Switching Power, SPNO Configuration - DA (UL) Series - DAR72405PU

Use this reliable reed relay from Sensata Cynergy3 to automate processes in your applications. It uses an electromagnetic coil to close a circuit when voltage is applied. To ensure efficient switching, the contacts are made from rhodium for high electrical conductivity and resistance to heat. You can mount this component on a panel using its wire wrap terminals for ease of installation. Thanks to its compact dimensions of 60 (length) x 15.8 (width) x 18.5mm (height), this unit will take up minimal space in your setup. You can use it in equipment such as cardiac defibrillators and high-voltage power supplies.

Features & Benefits

• Quick response time of 3ms for rapid switching
• Coil resistance of 780Ω to allow free flow of current and reduce heat dissipation
• Wide operating temperature range between -20°C and +70°C for use in harsh environments
• Maximum switching power of 50W for use in heavy-duty industrial applications

How long will this reed relay last?

This reed relay has an extended service life of up to one billion dry switching operations for long-term performance.

DA (UL) N/O, HIGH VOLTAGE RELAYS - 10KV, 7.5KV & 5KV Series Datasheet
