DBR71275U, Sensata / Cynergy3 PCB Mount Reed Relay, 12V dc Coil, NC, 1000V Max, 3 A Max, 240Ω, Реле

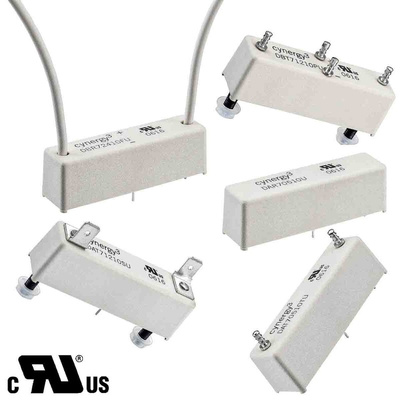

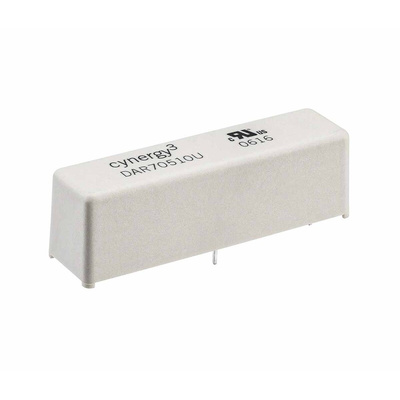

Sensata Cynergy3 Reed Relay, Rhodium Contacts, 1000V AC/DC Maximum Switching Voltage - DB(UL) Series - DBR71275U

For fast switching in your electronic devices, turn to this reed relay from Sensata Cynergy3. It has a maximum switching voltage of 1000V AC/DC, making it a good choice for heavy-duty applications. Thanks to the integrated PCB pin, you can directly mount this relay on your circuit board for quick and simple installation. You can use this component for applications such as test equipment, power supplies and medical devices.

Features & Benefits

• Isolation voltage of 7.5kV between contacts for reliable protection against surges
• Robust lifespan of one billion dry switching cycles for long-lasting performance
• Broad operating temperature range between -20°C and +70°C for use in harsh environments

What are this relay's contacts made of?

This relay's contacts are made of rhodium, which has good electrical conductivity properties. A low contact resistance of 50mΩ helps to ensure stable current flow. For added durability, the contacts are also resistant to corrosion and wear.

How fast is this reed relay?

This reed relay has a quick operating time of 2ms, so you can rely on it for rapid switching in sensitive applications.

DB (UL) N/C, HIGH VOLTAGE RELAYS - 10KV, 7.5KV & 5KV Series Datasheet
