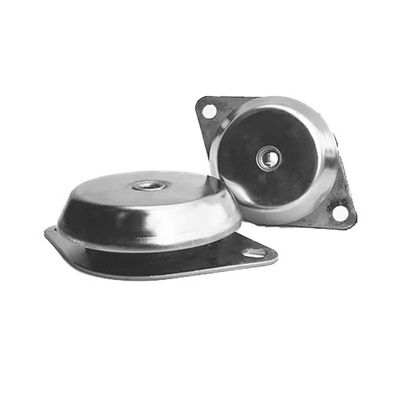

RS PRO Pedestal Mount
The RS PRO pedestal mount has a thread size of M10 and dimensions of 93mm x 36mm (diameter x height). This is a captive flanged mount with a rubber element designed to take vertical load applied in both shear and compression to give maximum isolation from vibrating equipment. It has a rubber hardness of 45ShoreA.
Features and Benefits
• Compression deflection: 3.5mm, 180kg
• Compact design with in-built bump and rebound control feature controls movement of equipment in transit
• Dome shaped metal cap protects the elastomer against splashes of oil and fuel contamination
• Compression design and metal cap effectively eliminate airborne noise when compared to spring mountings
• Thick base flange metal gives added strength
• Low height captive mounting capable of taking loads from 40kg to 5000kg
Applications
• Static and mobile generators
• Pumps, compressors, centrifugal fans, and blowers
• Railway equipment compartments
• Marine engines (no thrust) and gearboxes
• Electronic control panels
Certifications
• ANSI/ESD S20.20: 2014
• BS EN 61340-5-1: 2007
