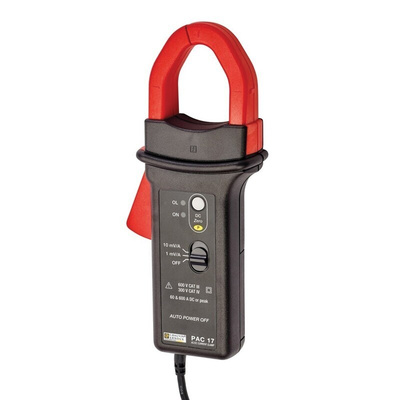

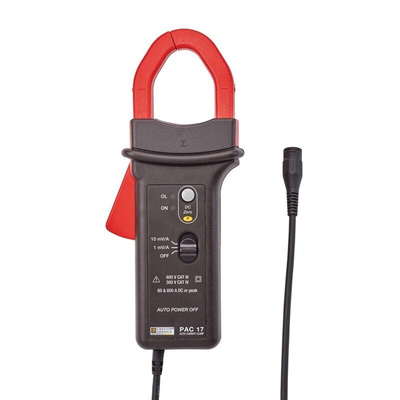

P01120117, Chauvin Arnoux PAC 17 Current Clamp, 600A dc DC Max, AC/DC Adapter, 400A ac AC Max - UKAS Calibrated

The PAC Series is a range of Hall-effect current clamps for measuring direct and alternating currents. 2 forms are proposed to clamp cables up to 30 mm or 2x24 mm in diameter, as well as small busbars. The range comprises PAC1x models and PAC2x models for higher currents. When used with an oscilloscope, this isolated current sensor has 2 sensitivities and allows you to view currents with a bandwidth of up to 30 kHz and peak current up to 600 A DC or peak. It is equipped with a simplified ZeroDC adjustment system and a deactivatable automatic standby function.

Rated current: 40 AAC/60 ADC - 400 AAC/600 ADC
Output signal: DC and AC voltage
Output / input ratio: 10 mV / A, 1 mV / A
Output via coaxial cable and isolated BNC male plug
