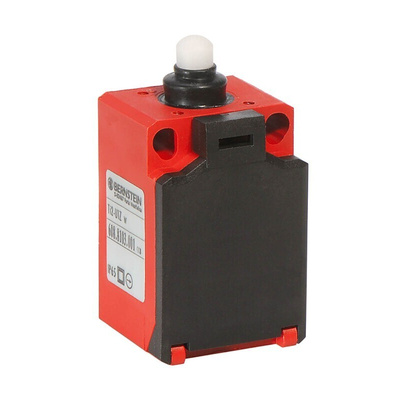

6088817009, Bernstein AG TI2 Series Roller Limit Switch, 2NC, IP65, DPST, Thermoplastic Housing, 240V ac Max, 10A Max

Compact limit switches Type Ti2 Ideal for safety applications and position monitoring in confined spaces.

Compact switch for safety or control applications in protection class IP 65
Optimised size while retaining tried-and-tested connection system
Two-channel safety monitoring possible
With captive snap-on cover
2 mm contact opening width of slow-action system conforming to EN 81-1 for lift construction
Small hysteresis in snap action system
Actuator can be repositioned by 4 x 90°
Slow-action and snap-action contacts
Versions: 1 NC / 1NO, 2 NC, 2 NO
All NC contacts with in the circuit diagram are positively opening contacts
Type: Zb (galvanically isolated changeover contact)
Different actuators available
Available with M12 connector
AS-interface variants available

Datasheet 6088817009
