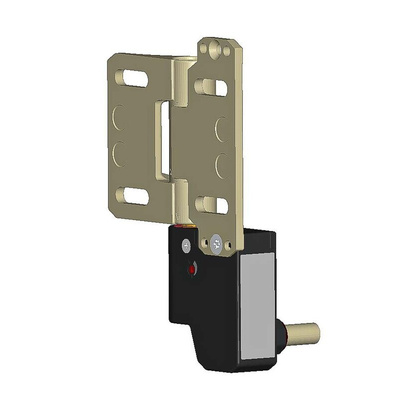

6019390025, Bernstein AG SHS3 Hinge Switch, 2NC/NO, Переключатель

The SHS3 is a safety hinge switch for hinged protective equipment.

Flexibility and safety for hinged protective equipment
Freely and repeatedly adjustable switching point
Switching point freely adjustable by user over a range of 270°
Uncomplicated re-adjustment even of set switching point by ±1.5° thanks to integrated fine adjustment system
Slots for mounting on sections and welded structures
Right and left hinged systems possible for optimum cable routing
Mounting between sections while maintaining the required finger guard gap
2 positive opening safety contacts with additional normally-open signalling contact
The load-bearing hinge is made from stainless steel or die-cast zinc while the switching system is housed in a high quality plastic enclosure
Stainless steel hinge for arduous applications like Food & Beverage industry or for heavy hinged protective equipment
Die-cast zinc hinge for standard applications
Available with M12 connector
Version with Ultra-Lock technology possible
AS-Interface variants available
Double hinge version with two switches available

Datasheet 6019390025
