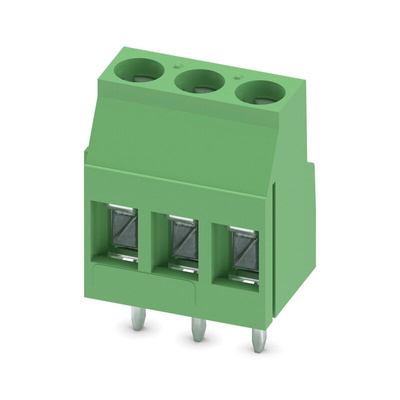

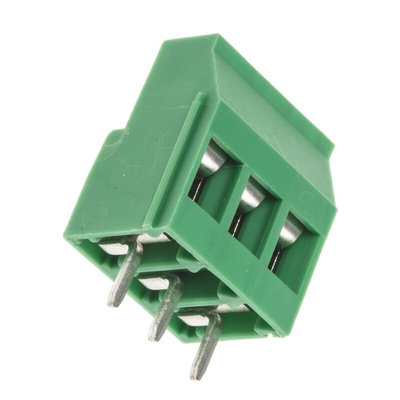

1711738, Phoenix Contact MKDS 3/ 3-5.08 Series PCB Terminal Block, 3-Contact, 5.08mm Pitch, Through Hole Mount, 1-Row, Solder

Phoenix Contact PCB Terminal Block, 28A Maximum Load Current, 630V Voltage Rating - MKDS 3/ 3-5,08 - 1711738

Tidy up your wiring with this PCB terminal block from Phoenix Contact. To simplify your operation, it creates a single connection point for up to three circuits, which frees up space for other components. A 28A maximum load current rating means it has the muscle to handle the demands of heavy-duty industrial instruments, electronics and medical devices.
The screw terminals have tension sleeves that press the conductor firmly against the busbar to protect the thread. For termination in a flash, simply prepare the wire, insert it in the terminal and tighten the screw to secure it. As this results in a firm fit, it helps prevent accidental disconnections when applications vibrate. Mounting the block is equally simple, as you simply punch the pins through the holes on your PCB and solder them in place. This product delivers glitch-free performance in temperatures between -40°C and +105°C.

Features & Benefits

• Accommodates wires sized from 24 to 12 AWG for versatility
• UL 94-V0-rated material is self-extinguishing for safety in the event of a fire
• 630V voltage rating, so it's a reliable choice for high-power systems

Approvals

UL (E60425); CSA (LR13631)

Datasheet 1711738

Line Drawing - 1711738
