1733570, Phoenix Contact SMKDSP 1.5/ 2-5.08 Series PCB Terminal Block, 2-Contact, 5.08mm Pitch, Through Hole Mount, 1-Row,

Phoenix Contact COMBICON SMKDSP 5.08mm Angled PCB Terminal Blocks

Angled PCB terminal blocks allow for several terminal rows to be arranged behind one another.

5.08mm pitch

Note

Low profile 55° entry versions are side stackable, but continuity of pitch will be lost.

Approvals

UL (E60425); CSA (LR13631)

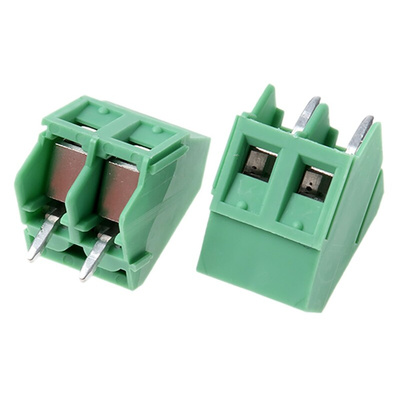

Phoenix Contact 2 Way PCB Terminal Block, 5.08 mm - SMKDSP 1,5/ 2-5,08 - 1733570

Use this two-way nylon PCB terminal block from Phoenix Contact to set up printed circuit boards (PCBs). It lets you easily connect wires to your boards for safe and reliable data transmission, power and signals.
The block is approved for voltages of up to 630 V and is designed for solder termination, making connections fast and efficient. An angled 5.08 mm pitch means you can arrange multiple terminal rows behind one another without increasing the overall height of the arrangement.
This component has been tested according to Phoenix Contact's rigorous quality and safety standards. With a UL E60425 certification for fire safety from Underwriters Laboratories, this component is suitable for use in various demanding industrial environments. You can use it for applications such as building board-to-board circuits, programming and prototyping.

• Current rating of 22 A
• Green nylon housing
• Two contacts
• 55° entry terminal
• Through-hole mounting type
• Tin solder pin surface
• Wire size of 30-14 AWG
• Length of 13.4 mm
• Hole diameter of 1.3 mm
• Weight of 2.81 g
• Inflammability rating of UL94 V0 means that burning stops within 10 seconds

Approvals

UL (E60425); CSA (LR13631)

Approvals

UL (E60425); CSA (LR13631)
