1869211, Phoenix Contact SMKDSN 1.5/2-5.08 Series PCB Terminal Block, 2-Contact, 5.08mm Pitch, Through Hole Mount, 1-Row, Solder

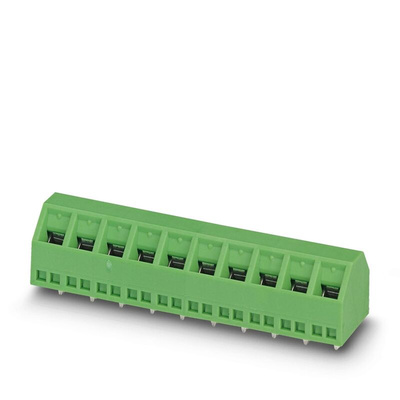

Phoenix Contact COMBICON SMKDSN 5.08mm Angled PCB Terminal Block

The SMKDSN range from Phoenix Contact are PCB terminal blocks that are 5.08mm pitched and feature a 45° connection direction. Phoenix's contacts are known world-wide so incorporating this PCB terminal block into your design allows you maximum flexibility and worldwide use. Not to mention, these connectors feature a low-temperature rise thanks to its maximum contact force and with the connector being angled, you can have a multi-row arrangement on the PCB. Screw connection terminals allow you to easily connect your wire and have a reliable connection, easily.

These PCB terminal blocks are designed to be wave soldered onto the PCB and have current ratings of 13.5A.

Features and benefits:

• Angled connector - allowing for connection of two conductors while also enabling multi-row arrange on the PCB


• Extremely small design for the respective conductor cross-section


• World-wide known connection technology for maximum versatility


• Linear pinning on pin-out


• Built from a durable polyamide material while being green in colour

How do PCB terminal blocks work?

PCB terminal blocks simply allow you to connect wire into a socket that then transmits the data to the PCB. They work by having you plug in a wire of the correct AWG into the socket that is then usually locked down by either a screw or spring-cage for a strong connection. This connection is also connected to the output pins that have been soldered onto the PCB.

Phoenix Contact SMKDSN 1.5/2-5.08 Series PCB Terminal Block, 13.5A, Screw Termination - 1869211

This high voltage PCB terminal block by Phoenix Contact is designed for applications in automation, electronics, electrical, and mechanical industries. With a current rating of 13.5A and a voltage rating of 630V, the SMKDSN 1.5/2 5.08 terminal block offers reliable connectivity and efficient performance.

Features & Benefits

• Suitable for Through hole mounting
• Manufactured with durable nylon material
• Consists of 2 pins for secure connections
• Pitch of 5.08mm for precise alignment
• Solder termination method for easy installation
• Compact design with a low profile
• Conductor cross sections up to 1.5mm²
• High voltage rating of 630V for enhanced safety

Applications

• Ideal for use in PCB applications requiring high voltage connectivity
• Suitable for automation systems where reliable connections are crucial
• Used in electrical equipment and control panels for efficient power distribution

Can it handle high voltage applications?

Yes, the Phoenix Contact PCB terminal block is rated for a high voltage of 630V, making it suitable for demanding applications.

Will it provide secure connections for critical systems?

The 2-pin design and solder termination method ensure stable and reliable connections, making it ideal for use in critical systems.

Is it suitable for compact spaces?

With its low profile and compact housing dimensions, the terminal block is perfect for applications where space is limited.

Approvals

UL (E60425); CSA (LR13631)

Approvals

UL (E60425); CSA (LR13631)

CSA LR13631

UL E60425
