1721731, Phoenix Contact MKKDS 3/ 3-5.08 Series PCB Terminal Block, 5.08mm Pitch, Through Hole Mount, Solder Termination

Double Level PCB terminal blocks, COMBICON MKKDS - Phoenix Contact

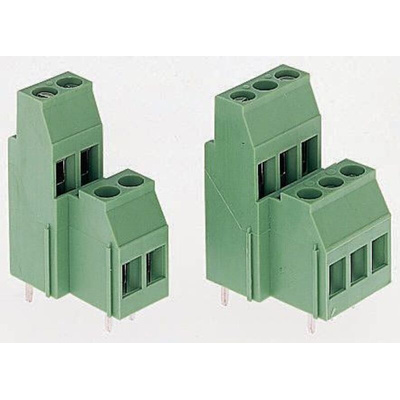

The MKKDS series from Phoenix Contact are double layer terminal blocks from the very popular COMBICON range. They're screw-connection terminal blocks and have a low-temperature rise thanks to their impressive maximum contact force. they also boast well-known connection principles that allow you to use these terminal blocks worldwide and in most applications while also having latching on the side that enables a number of positions to be combined. Not to mention, the MKKDS series are designed to be wave soldered onto the PCB.

These PCB terminal blocks are rated for a nominal current of 17.5 A with a nominal voltage of 400 V. They boast Cu (Copper) alloy contact plates whilst being built in a green polyamide housing.

Features and benefits:

• Double level terminal block with screw connections (M3)


• 5.08mm pitch for great compatibility


• Low temperature rise thanks to its maximum contact force


• Conductor connection on several levels enables higher contact density


• The latching on the side enables various numbers of positions to be combined

How do PCB terminal blocks work?

PCB terminal blocks simply allow you to connect wire into a socket that then transmits the data to the PCB. They work having you plug in a wire of the correct AWG into the socket that is then usually locked down by either a screw or spring-cage for a strong connection. This connection is also connected to the output pins that have been soldered onto the PCB.

Approvals

UL (E60425); CSA (LR13631)

The Phoenix Contact PCB terminal block that has integrated protective guide prevents incorrect insertion of the conductor underneath the tension sleeve. The latching on the side enables various numbers of positions to be combined.

Copper alloy contact material
Allows connection of two conductors

Approvals

UL (E60425); CSA (LR13631)

CSA LR13631

UL E60425
