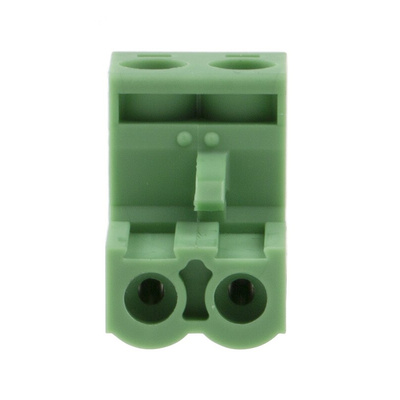

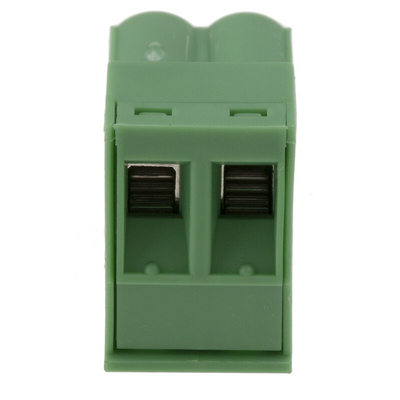

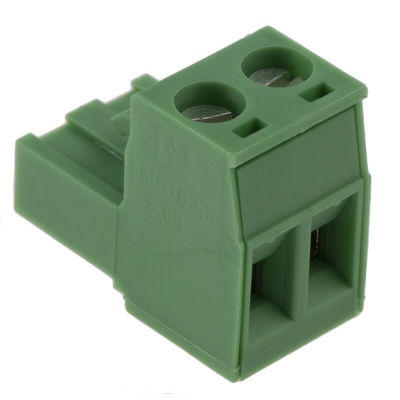

1757019, Phoenix Contact 5.08mm Pitch 2 Way Pluggable Terminal Block, Plug, Cable Mount, Screw Termination

1896010
Номер производителя: 1757019Производитель: Phoenix Contact
Цена за шт. (норма упаковки 5 шт)
733.20 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Phoenix Contact CLASSIC COMBICON MSTB 5.08mm PCB Terminal Blocks

A range of Classic COMBICON MSTB 5.08 mm pitch plug-in cable mount terminal block connectors from Phoenix Contact. The user-friendly PCB terminals feature a 0.2 mm² to 2.5 mm² screw connection that forms a standard plug-in system for 320 V (III/2).

CLASSIC COMBICON MSTB - Features and Benefits:

• Secure screw connection
• Well-known connection principle allows you to use worldwide
• Maximum contact force gives low temperature rise
• Long service life

Phoenix Contact PCB Terminal Block, 5.08mm Pitch, 2 Way - MSTB 2.5/2-5.08 - 1757019

The 1757019 terminal block from Phoenix Contact can be used to safely transmit power and data directly to your printed circuit boards (PCBs). Its compact design means that it's suitable for use in small spaces and at just 3.48g, it's easy to handle and won't add strain to your setup.
The component's polyamide (PA) body material offers excellent durability and impact resistance, so you can use it in harsh environments. This material also has effective insulation properties, protecting you from electrical shocks. Its copper-alloy contacts are highly conductive and offer you a reliable connection. These contacts are tin-plated to provide corrosion resistance, so you can use them for a long time without having to worry about rust.
Thanks to a screw termination method, installation is easy and doesn't need complex tools. A tension sleeve ensures there's no accidental disconnection, making this a useful choice for vibrating systems.

1757019 - Features & Benefits:

• Voltage rating of 630V for heavy-duty applications
• Compatible with wire size range of 12 to 30 AWG (American Wire Gauge) for versatile use
• Rated surge voltage of 4kV to withstand sudden spikes for electrical safety
• Contact material – Copper Alloy
• Contact plating – Tin
• UL94 V-0 flammability rating

Approvals

UL; CSA

Техническая спецификация
pdfDatasheet 1757019
pdfLine Drawing - 1757019
Кол-во контактов:
2
Количество рядов:
1
Концевая заделка:
Винт
Материал:
Нейлон
Номинал тока:
12A
Номинальное напряжение:
630 В
Ориентация корпуса:
Прямой
Серия:
MSTB 2.5/2-5.08
Тип монтажа:
Кабельное крепление
Тип съемного клеммного блока:
Plug
Цвет:
Зеленый
Шаг:
5.08мм
