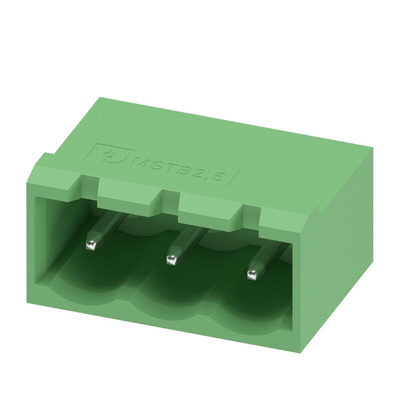

1757255, Phoenix Contact 5.08mm Pitch 3 Way Right Angle Pluggable Terminal Block, Header, Wave Soldering, Solder Termination

Phoenix Contact Pluggable Terminal Block, 12A Nominal Current Rating, 320V Nominal Voltage Rating - MSTBA 2,5/ 3-G-5,08 - 1757255

Seeking a flexible solution for tricky wire-to-board or board-to-board connections? This right-angled pluggable terminal block from Phoenix Contact does the job in awkward spots. It's a multi-way component that accommodates up to three circuits to simplify your assembly. Installation is a doddle – just crimp the wires to the PCB header and plug or unplug it to make and break links.
Thanks to a length of only 12mm, the unit takes up little space on crowded circuit cards. For hassle-free mounting, punch the linear pins through the holes on your board and solder to secure the piece. As the housing's made from rugged PA, this item brushes off impact and abrasion for added durability. Depending on the derating curve, you can also count on tip-top performance in temperatures between -40°C and +100°C. This means you can use it for your automated controls, medical imaging equipment and computer setups in harsh conditions.

Features & Benefits

• UL and CSA compliance means unit's approved for use in the United States and Canada
• UL 94-V0 certification indicates material will stop burning in 10 seconds, so it's a fire-safe option
• VDE approval assures you it has passed essential quality and safety tests for electrical equipment

Approvals

UL; CSA

Datasheet 1757255

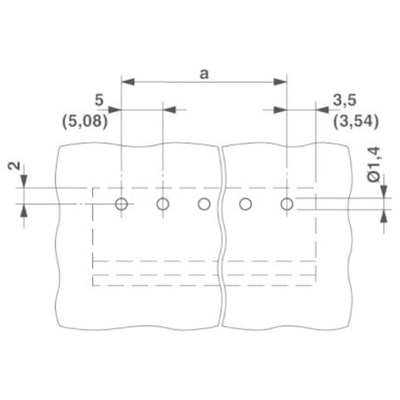

1757255 Drawing
