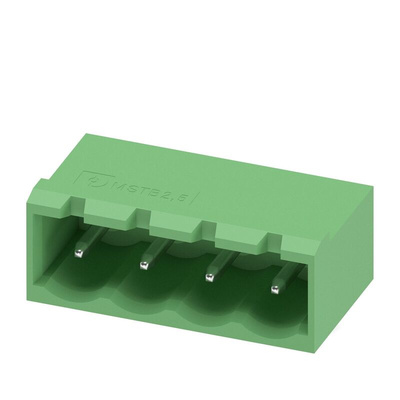

1757268, Phoenix Contact 5.08mm Pitch 4 Way Right Angle Pluggable Terminal Block, Header, Wave Soldering, Solder Termination

Phoenix Contact Pluggable Terminal Block, 12A Nominal Current Rating, 4kV Surge Voltage Rating - MSTBA 2,5/ 4-G-5,08 - 1757268

Create board-to-board or wire-to-board connections from the right angle with this pluggable terminal block from Phoenix Contact. As it establishes a 90° connecting point, it's ideal for links in tight or awkward areas. The unit handles up to four circuits, making it easier to customise or streamline PCB layouts for computers, industrial control panels and telecommunications setups.
For mounting that's done in a jiffy, punch the linear pins through the holes on your card and wave solder to secure them. Wire termination is just as easy – simply crimp the conductors and plug in the component. Thanks to a 5.08mm pitch and 22.24mm width, this space-saver slots easily into tight spots.
Rugged PA casing holds up against impact and chemical damage, so you can count on top-notch performance in heavy-duty applications. This also means that, depending on derating curves, this block works like a charm in temperatures as low as -40°C and as high as +100°C.

Features & Benefits

• UL 94-V0 rating means it helps prevent the spread of flames
• RoHS compliance means it contains only trace amounts of any dangerous materials
• CSA certification indicates it's tested for quality and safety and approved for use in Northern America

Approvals

UL; CSA

Datasheet 1757268

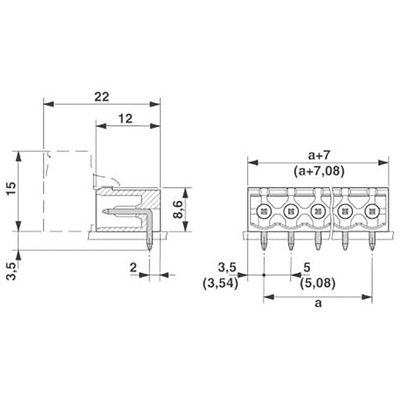

1757268 Technical Drawing
