1757349, Phoenix Contact 5.08mm Pitch 12 Way Right Angle Pluggable Terminal Block, Header, PCB Mount, Solder Termination

Phoenix Contact CLASSIC COMBICON MSTBA 5.08mm Terminal Block Headers

The MSTBA connectors from Phoenix Contact are from their COMICON range that is very well known for its simplicity but brilliant quality. These connectors feature multiple connection technologies so you can have maximum versatility to use one header for all applications. Not to mention, these connectors can come either in a right-angle orientation or straight orientations for maximum options. MSTBA connectors feature a closed contour to help ensure the plug-in connector has good stability.

The connectors are 5.08mm pitched, have tin-plated surfaces and are designed to be wave soldered onto PCB's.

Features and benefits:

• Well known mounting principle allows for worldwide use


• The MSTBA series can be used for all PCB connectors thanks to allowing multiple connection technologies


• Built from a durable Polyamide material


• Linear pinning that is designed to be soldered by a wave soldering technique (through-hole)


• Easy connection to the PCB - simply crimp your wire into a header and plug-in to these connectors

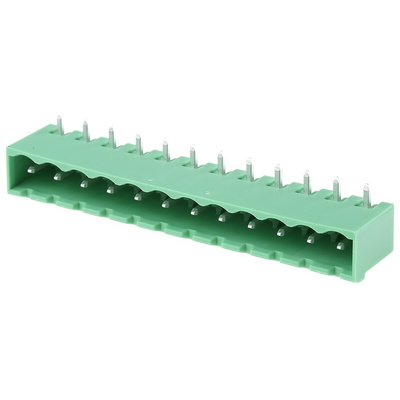

Phoenix Contact Right-Angle PCB Header, 5.08mm Pitch, 1 Row - MSTBA 2.5/12-G-5.08 - 1757349

This printed circuit board (PCB) header from Phoenix Contact allows you to create multiple connections to your PCB using a single block. It has a polyamide-material housing that offers durability and impact resistance, so it won't deform under pressure. This feature also provides effective insulation, protecting you from electric shocks. The header is shrouded to prevent electrostatic discharge (ESD) for uninterrupted, noiseless signal transmission.
This component has 12 pins made of tin material for efficient conductivity and easy soldering. These pins have a pitch of 5.08mm to prevent incorrect contact that could cause electrical short circuits. Its through-hole mounting system makes for easy soldering, saving you time.
In line with Phoenix Contact's quality and safety principles, this header has been rigorously tested by engineers to ensure that it's safe for you and your equipment. It complies RoHS (Restriction of Hazardous Substances) directives, meaning it contains only trace levels of any hazardous substances.

Features & Benefits

• Compatible with all PCB connectors for added versatility
• Rated surge voltage of 4kV to withstand voltage spikes and ensure electrical safety
• UL94V-0 (Underwriters' Laboratory) rating, meaning it's self-extinguishing in the event of a fire
