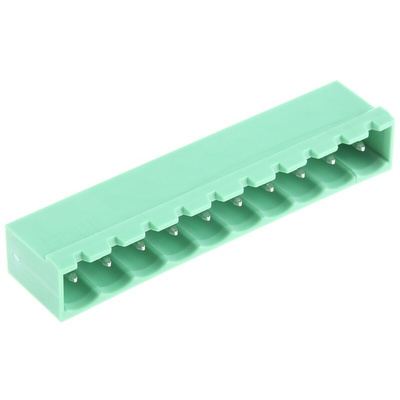

1755817, Phoenix Contact 5.08mm Pitch 10 Way Pluggable Terminal Block, Header, Wave Soldering, Solder Termination

1896262
Номер производителя: 1755817Производитель: Phoenix Contact
Цена за шт. (норма упаковки 5 шт)
1279.20 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Phoenix Contact CLASSIC COMBICON MSTBVA 5.08mm PCB Headers

Phoenix Contacts MSTBVA PCV headers are known worldwide for there easy and intuitive design, but also connection technology. These PCB headers are vertical connection so you can have multi-row arrangement on your PCB and can be easily wave soldered onto your board meaning they make great PCB headers for large productions. Talking of large productions, these headers come in a variety of sizes and pins so you can have one header for all your designs, reducing cost and keeping things effortless with mating connectors.

MSTBVA PCB header are green in colour to go hand in hand with the other Phoenix Contact accessories, feature a 12 A nominal current and have a cross section of 2.5mm.

Features and benefits:

  • Pitch: 5.08mm

  • Worldwide known design makes mounting to other connectors easy

  • Total flexibility in design – thanks to multiple pins with the same design you can have one header for all

  • Closed contour for optimum stability of the plug-in connection

  • Wave soldered to PCB board so you can incorporate it easily into any design

Approvals

UL; CSA

Phoenix Contact MSTBVA 2.5/10-G-5.08 Series Pluggable Terminal Block, 12.0A, Screw Termination - 1755817

This pluggable terminal block from Phoenix Contact offers a reliable and efficient solution for your automation, electronics, electrical, and mechanical needs. With a current rating of 12A and a voltage rating of 400V, this terminal block is ideal for various applications where secure connections are essential.

Features & Benefits

• Straight terminal block orientation for easy installation
• Header type design for efficient connectivity
• Solder termination method for a secure connection
• 5.08mm pitch for precise wiring applications
• Pluggable design for flexibility and ease of use

Applications

• Ideal for use in automation systems
• Suitable for electronic control units
• Perfect for electrical power distribution
• Great for interconnecting mechanical components

Can it handle high electrical currents?

Yes, this pluggable terminal block has a current rating of 12A, making it suitable for applications requiring high power.

Will it provide a secure connection?

Yes, the solder termination method ensures a reliable and stable connection for your electrical components.

Is it suitable for use in automation systems?

Yes, this terminal block is designed to meet the requirements of automation systems, providing secure connections for various components.

Can it accommodate different wire sizes?

The terminal block is versatile and can easily accommodate different wire sizes for flexible wiring configurations.

Does it require any special tools for installation?

No, this terminal block is designed for easy installation and can be quickly integrated into your system without the need for specialised tools.

Техническая спецификация
pdfDatasheet
pdfLine Drawing - 1755817
Кол-во контактов:
10
Количество рядов:
1
Концевая заделка:
Припой
Материал:
Полиамид
Материал контактов:
Медный сплав
Номинал тока:
12.0A
Номинальное напряжение:
400.0 V
Ориентация корпуса:
Прямой
Покрытие контактов:
Олово
Серия:
MSTBVA 2.5/10-G-5.08
Тип монтажа:
Wave Soldering
Тип съемного клеммного блока:
Header
Цвет:
Зеленый
Шаг:
5.08мм
