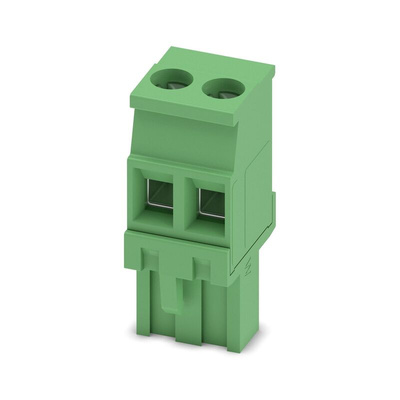

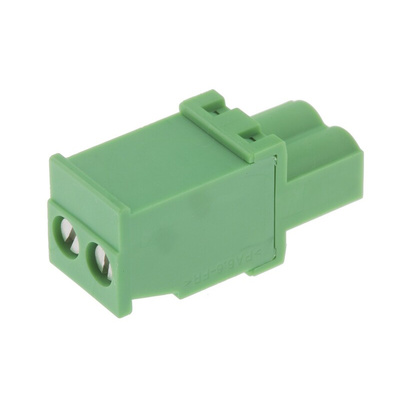

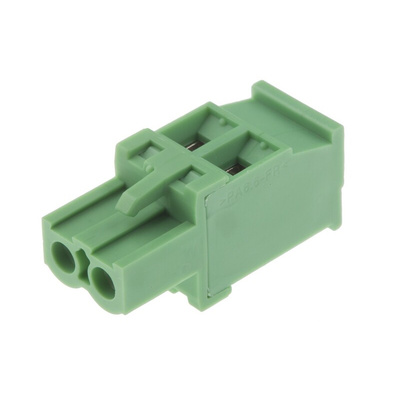

1792249, Phoenix Contact 5.08mm Pitch 2 Way Pluggable Terminal Block, Plug, Cable Mount, Screw Termination

Phoenix Contact Pluggable Terminal Block, 12A Current Rating, 630V Voltage Rating - MVSTBR 2,5/ 2-ST-5,08 - 1792249

Need a connector with the muscle to handle your high-voltage applications? Grab this pluggable terminal block from Phoenix Contact. It has a 630V rating and creates convenient links that you can simply plug in and unplug. The unit accommodates two circuits, so you can streamline your wire-to-board assembly.
Screw terminals are on hand to secure conductors tightly, so disconnections caused by vibration or jostling don't get in the way of productivity. As the terminals have tension sleeves, they achieve maximum contact force to keep temperature rises in check in demanding systems. Highly conductive copper alloy contacts send signals from A to B without any hiccups. These contacts are tin-plated to resist corrosion, so you can use the component in industrial electronics, control and measuring instruments and medical devices in damp or humid settings.
The module's flame retardant housing boosts fire safety, making it a solid choice for risky environments.

Features & Benefits

• Tough PA casing shrugs off chemical damage and impact for improved durability
• RoHS certification means it contains minimal amounts of any hazardous materials
• Light weight of 4.15g adds little strain to PCBs

Approvals

UL; CSA
