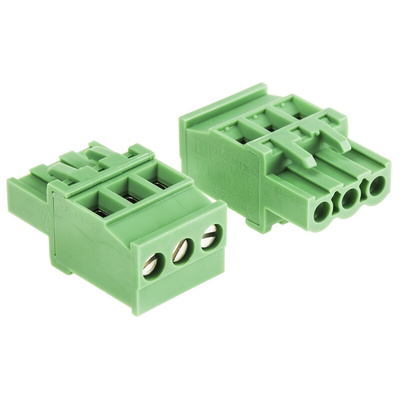

1792252, Phoenix Contact 5.08mm Pitch 3 Way Pluggable Terminal Block, Plug, Cable Mount, Screw Down Termination

Phoenix Contact CLASSIC COMBICON MVSTBR & MVSTBW 5.08mm Plug-in Terminal Block Connectors

The MVSTBR and MVSTBW series of PCB connectors are from the series 'CLASSIC COMBICON' and feature and 5.08mm pitch and a 0.2mm² to 2.5mm² screw connection terminal. Screw connections provide a strong connection and an easy install and also have a low-temperature rise thanks to the maximum contact force. Rated at 12 A, these PCB connectors will be suitable for most applications and they also have a well-known connection principle that allows you to incorporate these into designs to be used worldwide.

Housings are made from a strong polyamide material with Cu (Copper) alloy contacts.

Features and benefits:

• Universal 5.08mm pitch


• Well known connection principle allows for worldwide use


• Easy screw connection with tension sleeves


• Allows connection of two conductors


• Connectors come in various positions ranging from 2 to 24 way


• Once mated, allows for effortless push-in connection to PCB blocks

Applications:

The MVSTBR and MVSTBW series can be used in the below applications, but are not limited to:

• Control wiring


• Instrumentation


• Control and measurement


• Industrial electronics

The Phoenix Contact PCB connector that has low temperature rise, thanks to maximum contact force. It also comes with screw connection with tension sleeve connection method.

Copper alloy contact material
Allows connection of two conductors

Datasheet 1792252

1792252 Drawing
