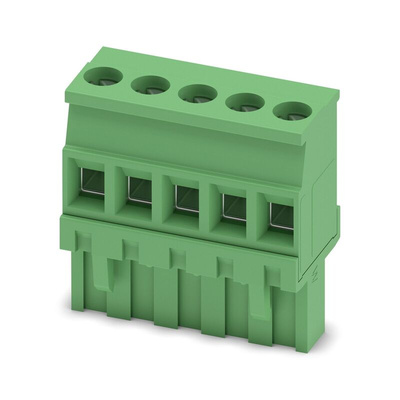

1792278, Phoenix Contact 5.08mm Pitch 5 Way Pluggable Terminal Block, Plug, Cable Mount, Screw Termination

Phoenix Contact CLASSIC COMBICON MVSTBR & MVSTBW 5.08mm Plug-in Terminal Block Connectors

The MVSTBR and MVSTBW series of PCB connectors are from the series 'CLASSIC COMBICON' and feature and 5.08mm pitch and a 0.2mm² to 2.5mm² screw connection terminal. Screw connections provide a strong connection and an easy install and also have a low-temperature rise thanks to the maximum contact force. Rated at 12 A, these PCB connectors will be suitable for most applications and they also have a well-known connection principle that allows you to incorporate these into designs to be used worldwide.

Housings are made from a strong polyamide material with Cu (Copper) alloy contacts.

Features and benefits:

• Universal 5.08mm pitch


• Well known connection principle allows for worldwide use


• Easy screw connection with tension sleeves


• Allows connection of two conductors


• Connectors come in various positions ranging from 2 to 24 way


• Once mated, allows for effortless push-in connection to PCB blocks

Applications:

The MVSTBR and MVSTBW series can be used in the below applications, but are not limited to:

• Control wiring


• Instrumentation


• Control and measurement


• Industrial electronics

Phoenix Contact MVSTBR 2.5/ 5-ST-5.08 Series Pluggable Terminal Block, 12A, Screw Termination - 1792278

This Phoenix Contact pluggable terminal block is a versatile solution for various industries, offering a reliable connection for high current applications. With a current rating of 12A, this terminal block is designed to provide a secure and efficient connection for your electronic and electrical projects. The tin plating ensures excellent conductivity while the Nylon material provides durability and reliability. The MVSTBR 2.5/5 ST 5.08 series ensures compatibility and easy integration into your projects.

Features & Benefits

• Secure screw terminal block Connection
• High 12A Current rating
• Durable nylon Material
• Tin Plating for Excellent Conductivity
• Cable mounting for Easy installation

Applications

• Ideal for Automation systems
• Perfect for Electronics Projects
• Suitable for Electrical Installations

Can it handle high current applications?

Yes, the pluggable terminal block has a current rating of 12A, making it suitable for high current applications.

Will it provide a secure connection?

Yes, the Screw terminal block ensures a secure and reliable connection for your projects.

Is it easy to install?

The cable mounting feature makes installation quick and effortless for various applications.

Can it be used in automation systems?

Yes, the Phoenix Contact pluggable terminal block is ideal for use in automation systems.

Is it suitable for electronic projects?

Yes, this terminal block is perfect for a wide range of electronic projects.
