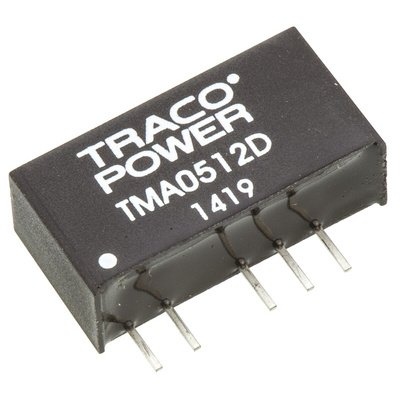

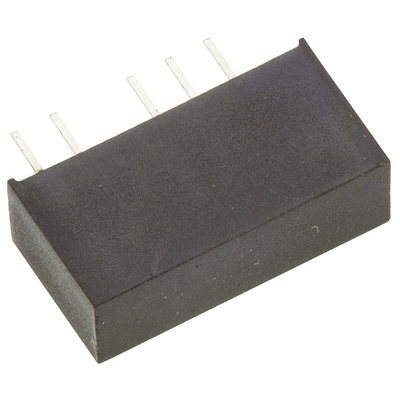

TMA 0512D, TRACOPOWER TMA DC-DC Converter, ±12V dc/ ±40mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C Max Temp, Преобразователь

Traco Power DC-DC Converter, 1kV Isolation Voltage, PCB Mounting - TMA Series - TMA 0512D

For reliable power distribution when you have little board space to spare, choose this DC-DC converter from Traco Power. A miniature SIP-7 footprint with compact dimensions of 19.5 (L) x 6.1 (W) x 10.2mm (D) ensures it uses minimal room on your PCB. It takes inputs from a 4.5 to 5.5V DC range and converts them into a reliably steady 12V DC output. As it supports through-hole mounting, it's widely compatible and keeps your connection stable. Industry-standard pinouts keep installation error-free, so you won't get any wires crossed.

Features & Benefits

• Wide operating temperature range between -40°C and +85°C for use in demanding environments
• Short-circuit protection shuts down power faults to protect your downstream circuits
• 1kV isolation voltage puts up barrier between input and output for safe use

Applications

• Mechanical engineering
• Telecommunications systems
• Industrial process control

How efficient is this DC-DC converter?

With efficiency of up to 78% at full load, this unit helps you save energy and runs cool.

How much does this component weigh?

The converter weighs just 2.2g, so puts minimal strain on your circuit board.
