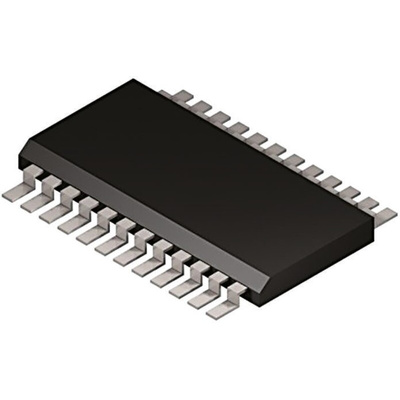

Maxim Integrated Voltage Supervisor, DS1780E+

Microprocessor Supervisory & Reset Circuits (5V and Adjustable), Maxim Integrated

The microprocessors supervisory circuit will reduce the complexity and amount of components used in order to monitor power supply and battery-control functions in μP systems. There are plenty of applications for the microprocessor supervisor, with some being in the automotive industry, industrial, servers & networking, laptops and notebook computers, controllers, critical μP monitoring, intelligent instruments such as testing equipment and portable battery equipment. The supervisory circuitry also provide maximum adjustability for reset & watchdog functions.

Key features –
•Adjustable Reset Threshold
•Adjustable Reset Timeout
•Adjustable watchdog timeout multiplier
•Power-supply transient immunity
•Overvoltage protection switch controller
•Thermal shutdown protection

Note

Please note that any defect or non – conformance of this product must be discovered and reported to RS within 20 days of purchase.

Microprocessor Supply Voltage Supervisory & Reset Circuits

Power supply voltage monitoring and supervisory circuits for use in desktop, laptop and notebook computers, test and measurement instruments, portable battery-powered equipment and multiple-output power supplies.

Supply Voltage Detector
Supply Voltage Supervisor
Power Supply Supervisor
Microprocessor Supervisory
Microprocessor Voltage Supervisor
Microcontroller Reset Circuit

DS1780, CPU Peripheral Monitor Data Sheet

MAX9759, 3.2W, High-Efficiency, Low-EMI, Filterless, Class D Audio Amplifier Data Sheet
