RS Pro Ethernet to BNC Ethernet Converte, Преобразователь

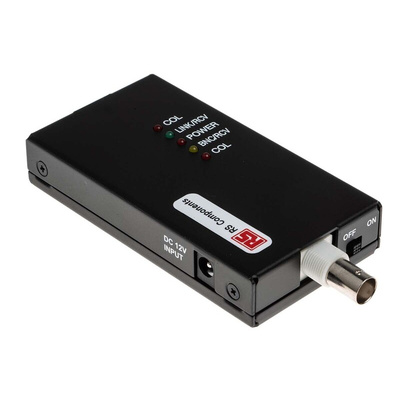

RS PRO Ethernet to BNC Ethernet Converter

Introducing the Ethernet to BNC Ethernet converter from RS PRO, a compact and cost effective media converter. This converter features an interface connector with one RJ-45 Jack from (Hub/station) select switch and a BNC socket to 10 Base-2 offering quick and easy installation. The RS PRO Ethernet to BNC Ethernet converter offers a data transfer rate of up to 10Mbps. The device also features LED indicators to highlight col, link/RCV, power, BNC/RCV, Col and is operated via an external power adapter that is included.

Features and benefits

• Interface Connector
• 10M Ethernet 10Base-T/2converter
• RJ-45 connector for UTP interface
• 1 x RJ-45 Jack from (Hub/station) select switch,
• 1 x BNC socket to 10 Base-2
• UTP: 100m
• Coaxial: 185m per segment
• Data Transfer Rate: 10Mbps
• LED Indicator: Col, Link/RCV, Power, BNC/RCV, Col

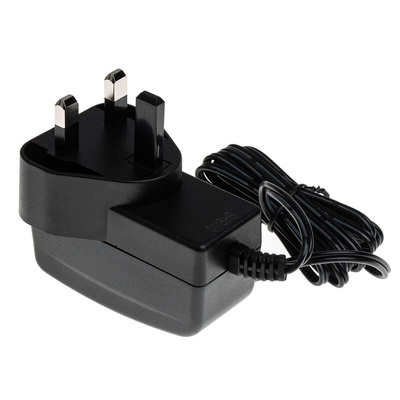

• Power Supply included: External Power Adapter DC5V1A
• Operating temperature: 0°C to 55°C
• Operating Humidity: 10% to 90% (Non-Condensing)
• Dimension: 104 x 55 x 20 mm
• Certification: FCC, CE

Application

Ethernet to BNC Ethernet converters are devices used to convert signals from Thin Ethernet for transmission over Unshielded Twisted-Pair (UTP) cable to a 10Base-T hub.

FAQs

Is the power supply included?

Yes, a power supply is included with this device.

Datasheet GT1MF-607
