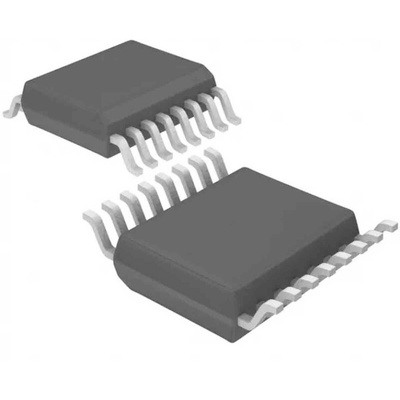

Maxim Integrated Voltage Supervisor 16-Pin Lead Wide SO, MAX691EWE+

Microprocessor Supervisory & Reset Circuits (4.63V to 4.67V), Maxim Integrated

The Maxim Integrated Products' MAX690 family of supervisory circuits reduces the complexity and number of components required for
power supply monitoring and battery control functions in microprocessor systems. These include μP reset and
backup-battery switchover, watchdog timer, CMOS RAM write protection, and power-failure warning. The MAX690
family significantly improves system reliability and accuracy compared to that obtainable with separate ICs or discrete components.

Low Power Consumption in Battery Backup Mode Extends Battery Life
Supervisory Function Integration Saves Board Space while Fully Protecting Microprocessor-Based Systems

Note

Please note that any defect or non – conformance of this product must be discovered and reported to RS within 20 days of purchase.

Microprocessor Supply Voltage Supervisory & Reset Circuits

Power supply voltage monitoring and supervisory circuits for use in desktop, laptop and notebook computers, test and measurement instruments, portable battery-powered equipment and multiple-output power supplies.

Supply Voltage Detector
Supply Voltage Supervisor
Power Supply Supervisor
Microprocessor Supervisory
Microprocessor Voltage Supervisor
Microcontroller Reset Circuit

Datasheet - 1901840
