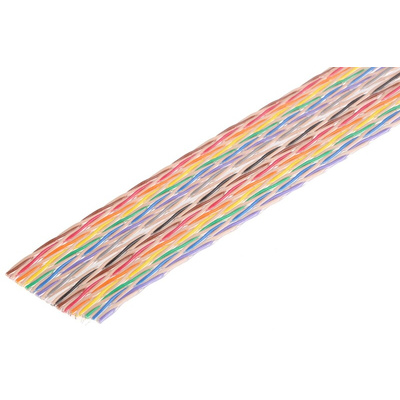

1700-34, 3M Twisted Ribbon Cable, 34-Way, 1.27mm Pitch, 30m Length, Кабель

3M Twist & Flat 1.27m Pitch Ribbon Cable - Type 1700

From 3M, this 1700 round ribbon cable is a flexible and robust solution to cabling in electronic devices and appliances.

Features and Benefits

• Wire gauge 28awg, 1.27mm pitch between conductors
• Reduced crosstalk in balanced drive applications
• Wires are colour coded for easy identification
• UL recognised style 50462

Applications

Ribbon cabling is frequently used in computing and in communication applications, and can be used for internal and external wiring in electronic appliances. Twisted ribbon cabling is often used in;

• Test and Measure
• Computing
• Robotics

Why Choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

Warning

These cables are not to be regarded as power cables or cables for the direct connection of equipment to mains power supplies

Approvals

UL Recognised

Approvals

UL 20462

Ribbon cables provide a simple, quick and cost-effective solution to mass termination. They also have space and weight saving advantages over other wiring methods and are ideal for use on computers, peripherals, and interface units, audio and digital equipment. Colour coded ribbon cable with alternate twisted pair and parallel conductor sections. Twisting of adjacent conductors reduces crosstalk whilst the flat sections at regular intervals still facilitate easy termination.

Cable Selection Guide
