2311797, Phoenix Contact 9 Way Cable Mount D-sub Connector Socket, Разъем

Phoenix Contact D-Sub Connector, 50V Nominal Voltage, 100mA Nominal Current - SUBCON-PLUS-F/AX 9 - 2311797

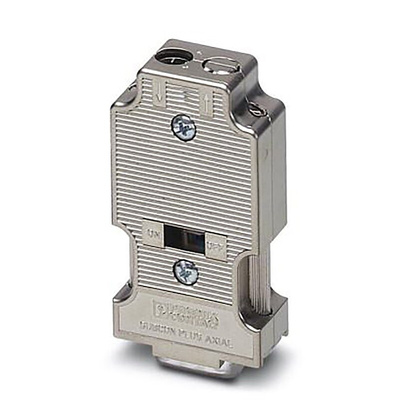

Need a quick and easy way to add plug-and-play capability to your circuits? Install this female D-sub connector from Phoenix Contact. It's a universal type that accepts VGA cables with ease. As you can insert and withdraw it up to 200 times, this is an ideal option for stationary systems you regularly upgrade.
The D-sub comes with an IP30 rating, which means it's touch-proof and shielded from objects greater than 2.5mm, so you're safe from shocks. Thanks to its mean time to failure of 155 years at total capacity, this is a highly dependable device. It has a broad operating temperature range of -25°C to +75°C, so it takes on tough conditions with ease. You'll find connectors like this installed on PCs, gaming consoles and AV equipment.

Features & Benefits

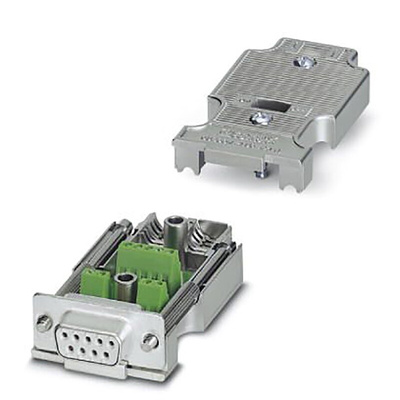

• Screw connection simplifies wiring to speed up installation
• Small 17 (W) x 58.2 (L) x 31.5mm (H) dimensions so it fits on a cramped PCB
• Low 34g weight puts minimal strain on your circuits
• ABS housing insulates the connection to prevent crosstalk and deliver crystal-clear signals
• Accepts wires between 26 and 20AWG, so it's highly versatile
• Universal bus system means it's widely compatible

Datasheet 2311797
