RS PRO Sounder unit, 24 V ac/dc, 110 V ac, 240 V ac, AC, DC, IP66

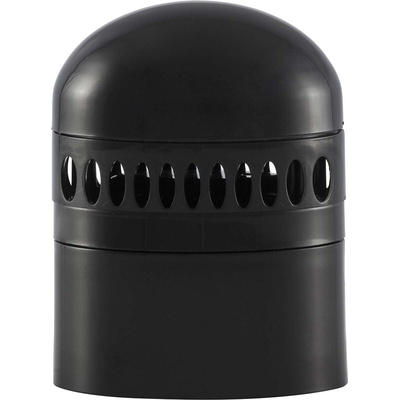

RS PRO Magnetodynamic Alarm

The RS PRO magnetodynamic alarm elliptical light tower is an acoustic signal module that provides eight sound output options selectable via an internal dipswitch. It is designed to fit on top of the elliptical LED signal tower to provide signalling solutions that improve the safety and productivity of control and automation equipment. The signal tower can be assembled to a maximum of 7 light modules or 6 light modules and a sounder module. The electrical connection is made via an IP20 touch-proof connector for total safety. All modules can be assembled and disassembled easily without tools or the need to disconnect the power supply. These signal towers are quick to install and provide a solution for all signalling needs.

Features and Benefits

• Supply voltage is 24VAC/DC, 110/240VAC
• Base diameter: 70mm
• Operating temperature ranges between -30°C and 50°C
• Body material is PC
• Current consumption: 450mA/200mA, 100mA/50mA
• Ring mount

Applications

• Aviation
• Factories
• Manufacturing units
• Process
• Broadcasting
• Process monitoring and automation

Certifications

• IP66 rated
• CE certified
