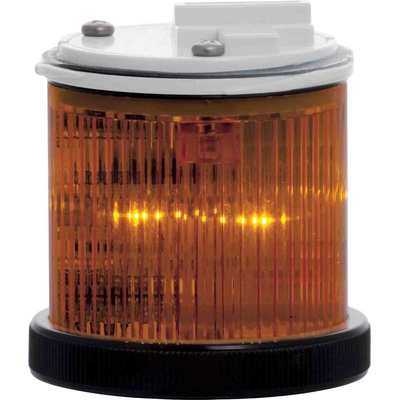

RS PRO Amber Multiple Effect Beacon Unit, 24 V ac/dc, LED Bulb, AC, DC, IP66

RS PRO Light Module

The RS PRO 50mm amber light module has a steady and flashing light effect. This signal tower can be assembled to a maximum of five light modules or four light modules and a sounder module. The electrical connection is made through an IP20 touch-proof connector creating an electrical contact in total safety. All these modules can be assembled and disassembled quickly and easily without tools and without the need to disconnect the power supply. These signal towers are quick to install and it provides a solution for all your signalling needs. This modules light output can be set to steady or flashing via an internal jumper link.
Note:
Also available are a wide range of mounting accessories which includes the wall mounting brackets and extension poles.

Features and Benefits

• Supply voltage is 24VAC/DC
• PC material
• Base diameter: 55mm
• Lamp included
• Ergonomically design
• Operating temperature ranges between -30°C and 50°C

Applications

• Aviation
• Factories
• Manufacturing units
• Process
• Broadcasting
• Process monitoring and automation

Certifications

• IP20 rated
• IP66 rated
• CE certified
• CEI 60068-2-6 SINE
