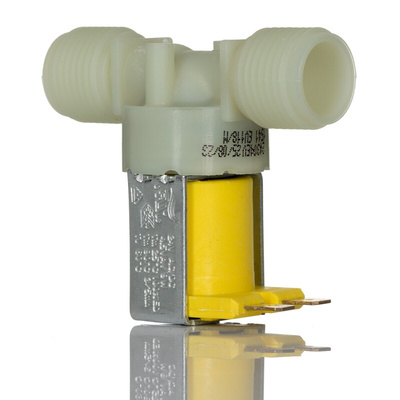

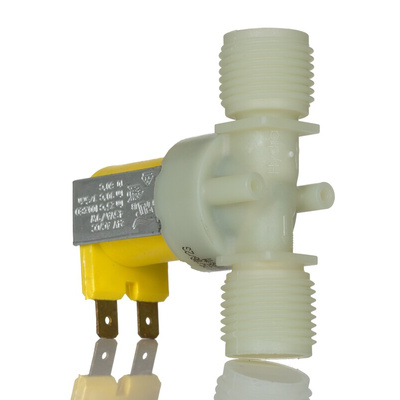

RS PRO Solenoid Valve, 2 port(s) , NC, 24 V ac/dc, 1/2in

RS PRO Solenoid Valve, 2 Port, NC, 24 V AC/DC, 1/2 in

This solenoid valve from RS PRO provides fast control response times in pressurised water systems. Use it to automatically shut off, release or distribute the flow of water in irrigation systems. It can be remotely operated, which makes it handy for managing automated watering systems.
The component eliminates the need for an operator to physically open or close the valve as it runs automatically. The unit is compatible with both AC and DC current, so there's no need to buy different valves for different power supplies.
You'll find a valve like this one used in domestic appliances, such as washing machines, dishwashers and air-conditioning systems. It meets European Standards EN 60 730-2-8, so it's safe to use as an automatic electrical pressure sensing control.

Features and Benefits

• Threaded male connection size of 1/2 in BSP
• NC (normally closed) default valve position
• Maximum operating temperature of +60°C
• Maximum working pressure of 10 bar
• Solenoid operation
• Orifice diameter of 2.6 mm
• Suitable for water
• Supply voltage of 24 V AC/DC
• Two ports

RS RPO Datasheet
