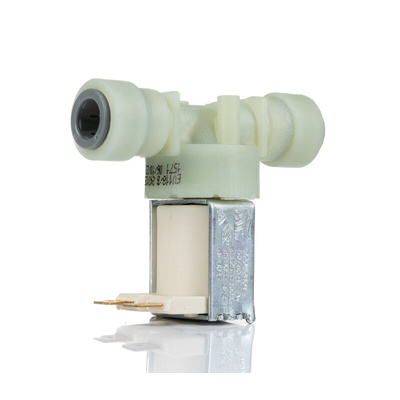

RS PRO 2 Port Solenoid Valve, NC, 230 V AC/DC, 3/8 in

A 2 port solenoid valve designed to release or to shut off the supply of water to hoses and sprinklers. Featuring a high maximum operating pressure of 10 bar enabling the reliable flow control over long lengths of piping.
The valve is in the default NC position and is remotely operated removing the need to physically open and shut your water supply. It doesn't use much power either, which makes it energy efficient and reduces your electrical consumption.
The solenoid valve is designed for use with both AC and DC current, which removes the need for buying additional valves for different power supplies.

Features and Benefits

• 2 port solenoid valve


• 3/8in push fit connections


• NC (normally closed) default valve position


• Maximum operating temperature of +60°C


• Maximum working pressure of 10 bar


• Solenoid operation


• Orifice diameter of 2.6 mm


• Suitable for potable water


• Supply voltage of 230 V AC/DC


• Power of 5W


• Duty cycle of 3 min on/ 5 min off


• Class F coil insulation

Standards and Approvals: EN 60 730-2-8, WRAS, ACS, EMC
