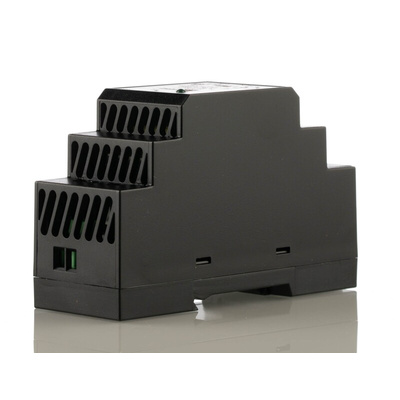

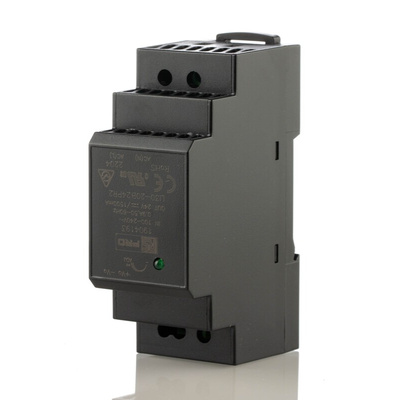

RS PRO DIN Rail Power Supply, 120 → 370 V dc, 85 → 264 V ac ac, dc Input, 24V dc Output, 1.5A Output, 36W, Блок питания

RS PRO DIN Rail Power Supply 120 → 370 V DC, 85 → 264 V AC Input Voltage, 24 V Output Voltage, 1.5 A Output

This DIN (Deutsches Institut für Normung) rail power supply from RS PRO converts currents from AC to DC in order to charge DC-compatible devices. You can also use it to power equipment needing variable DC current as the output is adjustable between 21.6 and 29 V. It's highly immune to noise, so it's fine to use in loud environments like workshops.
The unit comes with protection against short-circuits, overcurrent and overvoltage to safeguard you when operating it. It's also very reliable with a mean time between failures (MTBF) of 300,000 hours.
The power supply is also compact so you can use it in smaller spaces and it has a low ripple and noise effect of 150 mV, meaning it won't damage sensitive equipment.

Features and Benefits

• Input voltage of 120 to 370 V DC, 85 to 264 V AC
• Output voltage of 24 V DC
• Output current of 1.5 A
• Operating temperature range of -40°C to +70°C
• Typical efficiency of 89%
• Power rating of 36 W
• Typical load regulation of ±1.5%
• Height of 58 mm
• Depth of 35 mm
• DIN rail mounting
• Complies with EN 55032, EN 62368-1, IEC 62368-1, UL 62368-1
