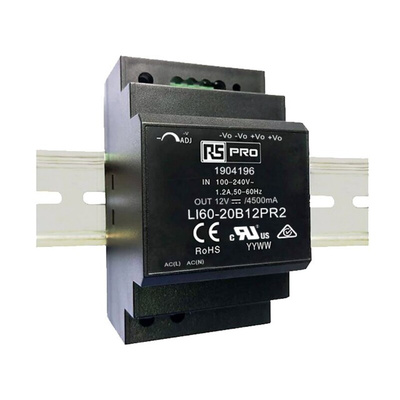

RS PRO DIN Rail Power Supply, 120 → 370 V dc, 85 → 264 V ac ac, dc Input, 12V dc Output, 4.5A Output, 54W, Блок питания

RS PRO DIN Rail Power Supply 120 → 370 V DC, 85 → 264 V AC Input Voltage, 12 V Output Voltage, 4.5 A Output

Need to convert currents from AC to DC in order to charge a DC appliance? This compact power supply is adjustable between 10.8 and 13.8 V DC to suit the device you're operating. You can easily mount it on a DIN (Deutsches Institut für Normung)rail and it's highly immune to noise, which means it works well in loud settings.
For energy efficiency, the unit uses minimal power when in standby mode. Thanks to its light weight, it's easy to shift between sites. Its minimal ripple and noise effect of 120 mV means it won't damage any sensitive kit stored nearby.
This device is highly reliable with a mean time between failures (MTBF) of over 300,000 hours. It also comes with short-circuit, overcurrent and overvoltage protection to keep you safe.

Features and Benefits

• Input voltage of 120 to 370 V DC, 85 to 264 V AC
• Typical load regulation of ±1.5%
• Output voltage of 12 V
• Output current of 4.5 A
• Single output
• Height of 58 mm
• Depth of 52 mm
• Power rating of 54 W
• Typical efficiency of 88%
• Operating temperature range of -40°C to +70°C
• Complies with EN 55032, EN 62368-1, IEC 62368-1, UL 62368-1

RS PRO Datasheet

RS PRO User Manual
