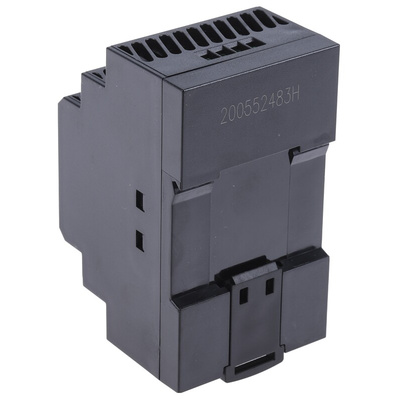

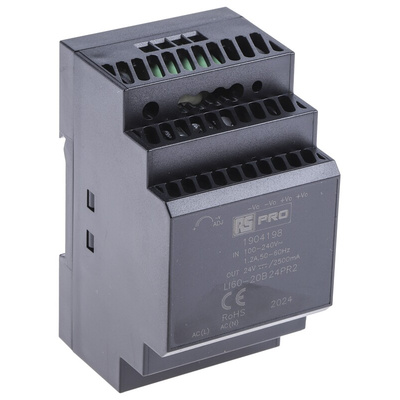

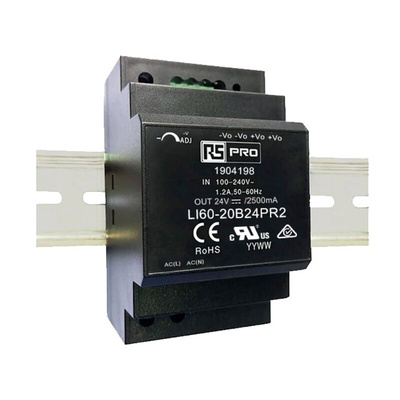

RS PRO DIN Rail Power Supply, 120 → 370 V dc, 85 → 264 V ac ac, dc Input, 24V dc Output, 2.5A Output, 60W, Блок питания

RS PRO DIN Rail Power Supply 120 to 370 V DC, 85 to 264 V AC Input Voltage, 24 V Output Voltage, 2.5 A Output

Choose this RS PRO DIN (Deutsches Institut für Normung) rail power supply to switch easily from AC to DC when powering equipment. It's immune to noise, so you can use it in loud areas like factories and garages without interference. You can even adjust the output voltage to use it with a variety of devices.
This product includes built-in protection against overcurrent, overvoltage and short-circuits to ensure your safety. It also has low noise and ripple of 150 mV to minimise wave distortion, meaning you can pair it with sensitive equipment. It's commonly found in building and household automation circuits, industrial control equipment and electronic systems.

Features and Benefits

• Input voltage of 120 to 370 V DC, 85 to 264 V AC
• Output voltage of 24 V DC
• Output voltage adjustment range of 21.6 to 29 V DC
• Output current of 2.5 A
• Mean time between failures (MTBF) of over 300,000 hours
• Operating temperature range of -40°C to +70°C
• Power rating of 60 W
• Height of 58 mm
• Depth of 52 mm
• Typical efficiency of 90%
• Typical load regulation of ±1.5%
• DIN rail mounting
• Single output
• Complies with EN 55032, EN 62368-1, IEC 62368-1, UL 62368-1
