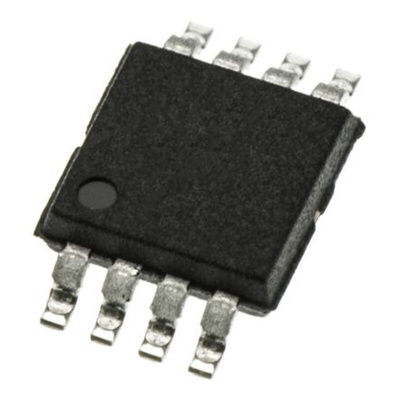

MAX5215GUA+, Maxim Integrated, DAC 14 bit- Serial (I2C), 8-Pin μMAX, ЦАП

Low-Power Consumption (80μA, max)
18μs Settling Time
16-/14-Bit Resolution in a 3mm x 5mm, 8-Pin μMAX Package
Relative Accuracy
±0.4 LSB INL (MAX5215, 14 Bit) typ, 1 LSB (max)
±1.2 LSB INL (MAX5217, 16 Bit) typ, 4 LSB (max)
Guaranteed Monotonic Over All Operating Range
Low Gain and Offset Error
Wide 2.7V to 5.5V Supply Range
Rail-to-Rail Buffered Output Operation
Safe Power-Up-Reset to Zero DAC Output
I²C-Compatible 400kHz Serial Interface
User-Programmable Active-Low AUX Input Functions
Active-Low CLR, Clear to 0, Midscale, or Full Scale
Active-Low LDAC, Asynchronous Load DAC
256kΩ Reference Input Resistance for Low Power Operation
Buffered Voltage Output Directly Drives 10kΩ Loads
Output Power-Down Terminated with 1kΩ or 100kΩ to Ground or Left High-Impedance
Applications
Automatic Test Equipment
Automatic Tuning
Communication Systems
Data Acquisition
Gain and Offset Adjustment
Portable Instrumentation
Power Amplifier Control
Process Control and Servo Loops
Programmable Voltage and Current Sources
Remote Sensing

Datasheet -MAX5215GUA+
