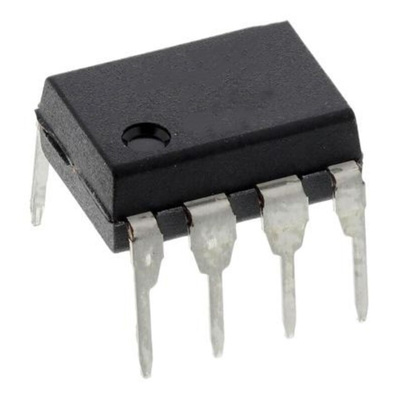

Maxim Integrated DG419DJ+ Multiplexer 10 to 30 V, 8-Pin PDIP

Plug-In Upgrades for Industry-Standard DG417/DG418/DG419
Improved RDS(ON) Match Between Channels (3Ω max, DG419 only)
Guaranteed RFLAT(ON) Over Signal Range (4Ω max)
Improved Charge Injection (10pC max)
Improved Off-Leakage Current Over Temperature (< 5nA at +85°C)
Withstand Electrostatic Discharge (2000V min)
Existing Features
Low RDS(ON) (35Ω max)
Single-Supply Operation +10V to +30V
Bipolar-Supply Operation ±4.5V to ±20V
Low Power Consumption (35μW max)
Rail-to-Rail Signal Handling
TTL/CMOS-Logic Compatible
Applications
Audio-Signal Routing
Battery-Powered Applications
Communication Systems
Fax Machines
Guidance and Control Systems
Military Radios
Modems
PBX, PABX
Sample-and-Hold Circuits
Test Equipment

DG419DJ+ - Datasheet
