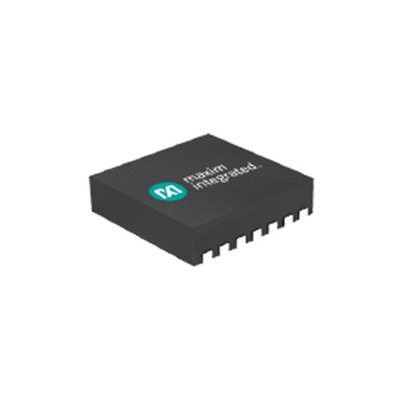

Maxim Integrated MAX14611ETD+T, Voltage Level Translator Logic Level Translator Bi-Directional, 14-Pin TDFN, Транслятор

Improved Interoperability
10kΩ Internal Pullup Resistor
Pin-to-Pin Compatible with the MAX3377E and the MAX3378E
0.9V Operation on Low Voltage Supply
Robust Logic-Level Translation
±0.5V Tolerances on All Pins
±6kV Human Body Model ESD Protection
Thermal Short-Circuit Protection
Short to Ground Fault Protection on All Pins
-40°C to +85°C Operating Temperature Range
Increased Design Flexibility
Ultra-Low Supply Current
Pullup Resistor Enabled with a Single Power Supply when Active-Low TS = High
10Ω (max) Transmission Gate FET
Small, 14-Pin, 3.0mm x 3.0mm TDFN Package and 14-Pin, 4.9mm x 5.1mm TSSOP Package
Applications
Low-Voltage ASIC Level Translation
Mobile Phones
Portable Electronics
POS Systems
SPI, I²C, and MDIO Level Translation
Telecommunications Equipment

Datasheet MAX14611ETD+T
