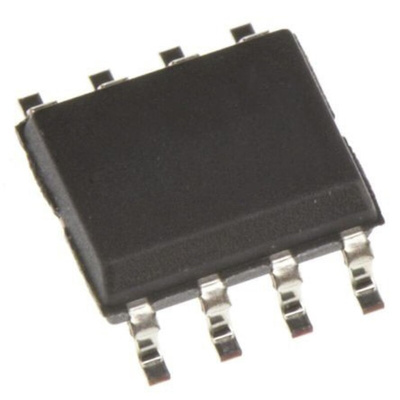

Maxim Integrated MAX15013AASA+, MOSFET 2, 2 A, 12.6V 8-Pin, SO

HIP2100/HIP2101 Pin Compatible (MAX15012A/C and MAX15013A/C)
Up to 175V Input Operation
8V to 12.6V VDD Input Voltage Range
2A Peak Source and Sink Current Drive Capability
35ns Typical Propagation Delay
Guaranteed 8ns Propagation Delay Matching Between Drivers
Up to 500kHz Switching Frequency
Available in CMOS (VDD/2) or TTL Logic-Level Inputs with Hysteresis
Up to 14V Logic Inputs Independent of Input Voltage
Low 2.5pF Input Capacitance
Low 70μA Supply Current
Versions Available with Combination of Noninverting and Inverting Drivers (MAX15012B/D and MAX15013B/D)
Available in Industry-Standard 8-Pin SO and Thermally Enhanced SO Packages
Applications
Active-Clamp Forward Converters
Full-Bridge Converters
Motor Control
Power-Supply Modules
Telecom Half-Bridge Power Supplies
Two-Switch Forward Converters

Datasheet -MAX15013AASA+
