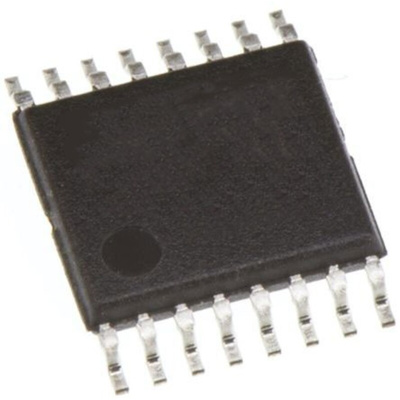

Maxim Integrated MAX9169EUE+, LVDS Repeater LVDS TSSOP, Ретранслятор

150ps (max) Pulse Skew
200psP-P (max) Added Deterministic Jitter at 630Mbps (223 - 1) PRBS Pattern
8psRMS (max) Added Random Jitter
120ps (max) Channel-to-Channel Skew
630Mbps Data Rate
30mA (max) (MAX9169), 25mA (max) (MAX9170) Supply Current, a 15% Improvement vs. Competition
LVDS (MAX9169) or +5V Tolerant LVTTL/LVCMOS (MAX9170) Input Versions
Fail-Safe Circuit Sets Output High for Undriven Differential Input
Output Rated for 10pF Load
Individual Output Enables
Single 3.3V Supply
Improved Second Source of the SN65LVDS104 (MAX9169)/SN65LVDS105 (MAX9170)
16-Pin SO and TSSOP Packages
Applications
Add/Drop Multiplexers
Backplane Interconnect
Cell Phone Base Stations
Clock Distribution
Digital Cross-Connects
Network Routers and Switches
Point-to-Point Baseband Data Transmission

MAX9169EUE+ - Datasheet
