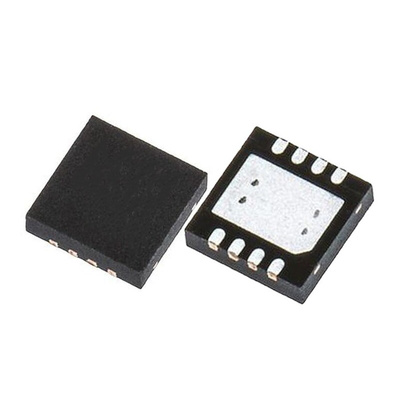

STMicroelectronics M24128-BFMC6TG, 128kbit EEPROM Chip, 450ns 8-Pin UFDFPN Serial-I2C, Память

The M24128 is a 128-Kbit I2C-compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 16 K x 8 bits. The M24128-BW can operate with a supply voltage from 2.5 V to 5.5 V, the M24128-BR can operate with a supply voltage

Compatible with all I2C bus modes:
1 MHz
400 kHz
100 kHz
Memory array:
128 Kbit (16 Kbyte) of EEPROM
Page size: 64 byte
Additional Write lockable page
Single supply voltage and high speed:
1 MHz clock from 1.7 V to 5.5 V
Write:
Byte Write within 5 ms
Page Write within 5 ms
Operating temperature range:
from -40 °C up to +85 °C
Random and sequential Read modes
Write protect of the whole memory array
Enhanced ESD/Latch-Up protection
More than 4 million Write cycles
More than 200-years data retention
Packages
SO8
TSSOP8
UFDFPN8
WLCSP
UFDFPN5
Unsawn wafer (each die is tested)

Datasheet M24128-BFMC6TG
