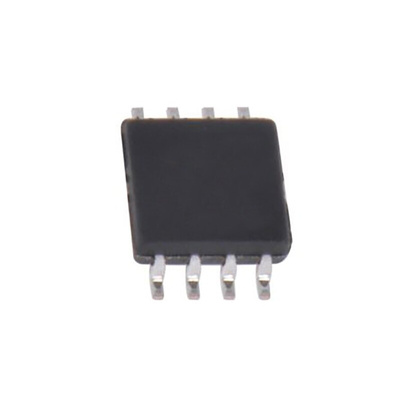

STMicroelectronics M24C16-WDW6TP, 16kbit EEPROM Chip, 900ns 8-Pin TSSOP Serial-I2C, Память

The M24C16 is a 16-Kbit I2C-compatible EEPROM (Electrically Erasable PROgrammable Memory) organized as 2 K x 8 bits.

Compatible with all I2C bus modes:
400 kHz
100 kHz
Memory array:
16 Kbit (2 Kbyte) of EEPROM
Page size: 16 byte
Single supply voltage:
M24C16-W: 2.5 V to 5.5 V
M24C16-R: 1.8 V to 5.5 V
M24C16-F: 1.7 V to 5.5 V (full temperature range) and 1.6 V to 1.7 V (limited temperature range)
Write:
Byte Write within 5 ms
Page Write within 5 ms
Operating temperature range:
from -40 °C up to +85 °C
Random and sequential Read modes
Write protect of the whole memory array
Enhanced ESD/Latch-Up protection
More than 4 million Write cycles
More than 200-years data retention
Packages
PDIP8
SO8
TSSOP8
UFDFPN8
UFDFPN5
Unsawn wafer (each die is tested)

Datasheet M24C16-WDW6TP
