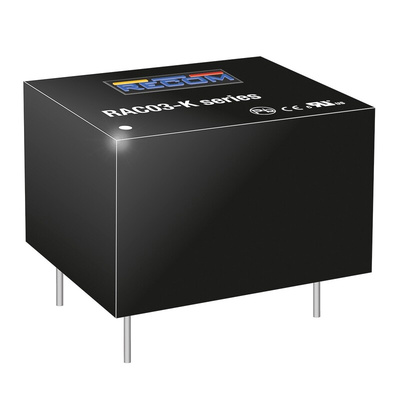

Recom Switching Power Supply, RAC03-05SK, 5V dc, 600mA, 3W, 1 Output, 85 → 264V ac Input Voltage, Источник питания

RECOM Switching Power Supply, 10,000μF Maximum Capacitative Load, 74% Efficiency - RAC03-K Series - RAC03-05SK

Put the job of current conversion into safe hands with this switching power supply from RECOM. It might be tiny at just 28.5mm in length and 20g in weight, but its 3W rating makes it a powerful option. Expect 85 to 264V AC inputs to be transformed into a 5V DC output in a trice, even in temperatures as low as -40°C and as high as +80°C. You won't be left waiting for results, as an eco standby mode means you can turn on your devices in just 20ms.

• 74% efficiency indicates minimal power loss during conversion or to heat
• Pin mounting for quick installation on a circuit board
• Single output for straightforward use

Applications

• Computer systems
• Manufacturing facilities
• Telecommunications equipment

In a compact 1in2 footprint, the RAC03-K series modules deliver an output power of 3 watts from -40°C to 60°C and 2 watts up to 80°C. Despite such a high power density and small footprint, the RAC03-K series is a complete solution for worldwide applications in automation, industry 4.0, IoT, household, and home automation. With an input voltage range from 85 to 264VAC these are some of the most versatile power modules on the market.

Why is it important I use the right switching power supply?

8 inch² footprint for the tiniest 3 watt module
Standby mode optimized
No load power consumption <150mW
Operating temperature range: -40°C to +80°C

Choosing the correct power supply is essential to keep your devices running smoothly. If you choose the wrong output, your device could overload and shut down or not work as efficiently as it should.

Datasheet RAC03‐05SK
