MAX2611EUS+T Maxim Integrated, RF Amplifier Low Noise, 18.3 dB 500 MHz, 4-Pin SOT-143

The MAX2611 is a low-voltage, low-noise amplifier for use from DC to microwave frequencies. Operating from a single +5V supply, it has a 3dB bandwidth of 1100MHz. The MAX2611's low noise figure and high drive capability make it ideal for a variety of transmit, receive, and buffer applications.
In a typical application, the only external components needed are input and output blocking capacitors and a VCC series resistor. To improve gain and output power, an RF choke can be added in series to the bias resistor.

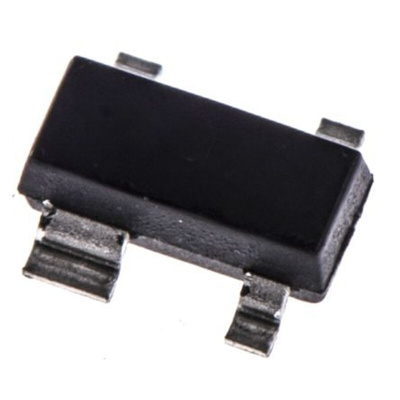

The MAX2611 comes in a 4-pin SOT143 package, requiring minimal board space.

Single +5V Supply Operation
3dB Bandwidth: DC to 1100MHz
High Gain: 18dB at 500MHz
Low Noise Figure: 3.5dB at 500MHz
High Drive Capability: +3dBm at 16mA ID
Ultra-Small SOT143 Package
Applications
Global Positioning Systems (GPS)
ISM Radios
Land Mobile Radios
Satellite Receivers
Set-Top Boxes
TV Tuners
Wireless Local Area Networks (WLANs)
Wireless Local Loop (WLL)

Datasheet MAX2611EUS+T
