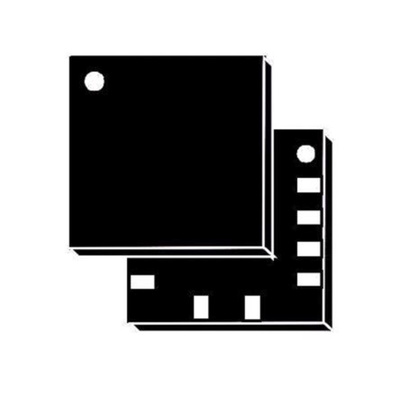

LIS3DHHTR, STMicroelectronics 3-Axis Surface Mount Accelerometer, LGA, 16-Pin, Акселерометр

Features:
- 3-axis, ±2.5 g full-scale
- Ultra-low noise performance: 45 μg/√Hz
- Excellent stability over temperature (<0.4 mg/°C) and time
- 16-bit data output
- SPI 4-wire digital output interface
- Embedded temperature sensor
- 12-bit temperature data output
- Embedded FIFO (depth 32 levels)
- High shock survivability
- Extended operating temperature range (-40 °C to +85 °C)
- ECOPACK®, RoHS and “Green” compliant

Description:

The LIS3DHH is an ultra-high-resolution and low noise three-axis linear accelerometer.

The LIS3DHH has a full scale of 2.5 g and is capable of providing the measured accelerations to the application through an SPI 4-wire digital interface.

The sensing element is manufactured using a dedicated micromachining process developed by STMicroelectronics to produce inertial sensors and actuators on silicon wafers.

The IC interface is manufactured using a CMOS process that allows a high level of integration to design a dedicated circuit which is trimmed to better match the characteristics of the sensing element.

The LIS3DHH is available in a high-performance (low-stress) ceramic cavity land grid array (CC LGA) package and can operate within a temperature range of -40 °C to +85 °C.

Datasheet
