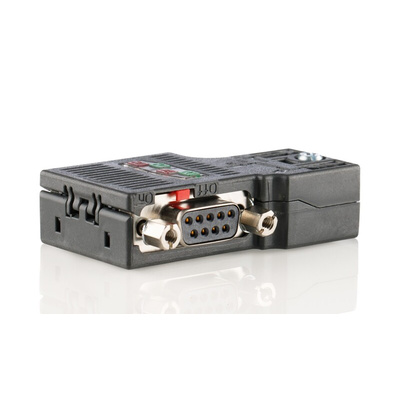

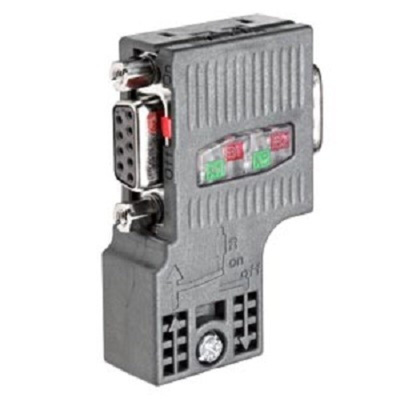

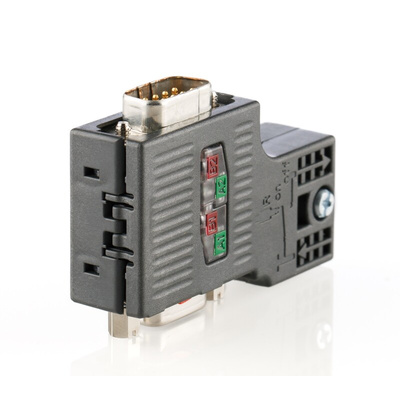

6ES7972-0BB52-0XA0, Siemens Plug for Use with PROFIBUS Bus Cable

Siemens Connection Plug For PROFIBUS Bus Cable, 9.6 to 12Mbit/s Transfer Speed - 6ES7972-0BB52-0XA0

Attach a PROFIBUS node to a bus cable using this connection plug from Siemens. A transfer rate between 9.6kbit/s and 12Mbit/s means it's suitable for high-transmission applications. The plug comes with a screw locking mechanism that keeps it firmly in place, so you can rely on it to hold securely even in vibrating systems. Thanks to its broad operating temperature range between -25°C and +60°C, the plug is also suitable for use in demanding environments. Maintain a fast and secure PROFIBUS connection to your PLC (programmable logic controller) system with this connector.

• Low weight of 10g means it's easy to handle and connect
• Silicon-free to prevent workforce exposure to hazardous materials
• Plastic housing material is dirt-resistant and easy to maintain
• Siemens FastConnect technology means connections are colour-coded to reduce insertion errors

What type of connections does this plug have?

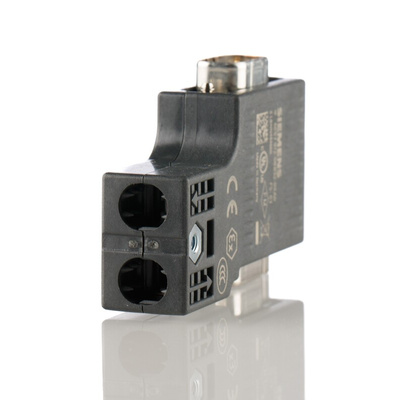

This plug has two connections for PROFIBUS cables. These are made from robust insulation displacement contacts (IDC) that provide full surface contact for excellent conductivity. For connection to terminal equipment, there's a single 9-pin D-sub (D-subminiature) connector that provides highly effective signal transmission.
