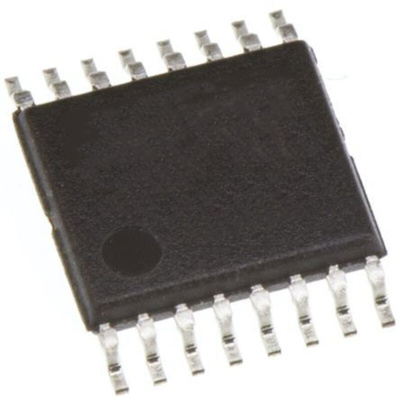

MAX5135GUE+, Maxim Integrated, DAC Quad 12 bit- SPI Serial, 16-Pin TSSOP, ЦАП

16-/12-Bit Resolution Available in a 4mm x 4mm, 24-Pin TQFN Package or 16-Pin TSSOP
Hardware-Selectable to Zero/Midscale DAC Output on Power-Up or Reset
Double-Buffered Input Registers
Active-Low LDAC Asynchronously Updates DAC Outputs Simultaneously
Active-Low READY Facilitates Daisy Chaining
High-Performance 10ppm/°C Internal Reference
Guaranteed Monotonic Over All Operating Conditions
Wide +2.7V to +5.25V Supply Range
Rail-to-Rail Buffered Output Operation
Low Gain Error (Less Than ±0.5%FS) and Offset (Less Than ±10mV)
30MHz 3-Wire SPI-/QSPI-/MICROWIRE-/DSP-Compatible Serial Interface
CMOS-Compatible Inputs with Hysteresis
Low-Power Consumption (ISHDN = 2μA max)
Applications
Automatic Test Equipment
Automatic Tuning
Communication Systems
Data Acquisition
Gain and Offset Adjustment
Portable Instrumentation
Power-Amplifier Control
Process Control and Servo Loops
Programmable Voltage and Current Sources

Datasheet - MAX5135GUE+
