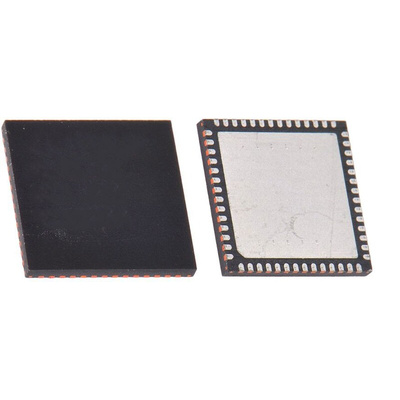

Maxim Integrated MAX9276AGTN/V+, LVDS Deserializer LVCMOS, 56-Pin TQFN, Десериалайзер

Ideal for High-Definition Video Applications
Works with Low-Cost 50Ω Coax Cable and FAKRA Connectors or 100Ω STP
104MHz High-Bandwidth Mode Supports 1920´720p/60Hz Display With 24-Bit Color
Equalization Allows 15m Cable at Full Speed
Up to 192kHz Sample Rate And 32-Bit Sample Depth For 7.1 Channel HD Audio
Audio Clock from Audio Source or Audio Sink
Color Lookup Table for Gamma Correction
CNTL[3:0] Control Outputs
Multiple Data Rates for System Flexibility
Up to 3.12Gbps Serial-Bit Rate
6.25MHz to 104MHz Pixel Clock
9.6kbps to 1Mbps Control Channel in UART, Mixed UART/I2C, or I2C Mode with Clock-Stretch Capability
Reduces EMI and Shielding Requirements
Programmable Spread Spectrum Reduces EMI
Tracks Spread Spectrum on Input
High-Immunity Mode for Maximum Control-Channel Noise Rejection
Peripheral Features for System Power-Up and Verification
Built-In PRBS Tester for BER Testing of the Serial Link
Programmable Choice of 8 Default Device Addresses
Two Dedicated GPIO Ports
Dedicated “Up/Down” GPI for Touch-Screen Interrupt and Other Uses
Remote/Local Wake-Up from Sleep Mode
Meets Rigorous Automotive and Industrial Requirements
-40°C to +105°C Operating Temperature
±8kV Contact and ±15kV Air ESD Protection
Applications
High-Resolution Automotive Navigation
Megapixel Camera Systems
Rear-Seat Infotainment

MAX9276AGTN/V+ - Datasheet
